6X6 desert oil field cargo tractor

I'm Online Chat Now

6X6 desert oil field cargo tractor

China 6X6 desert oil field cargo tractor supplier

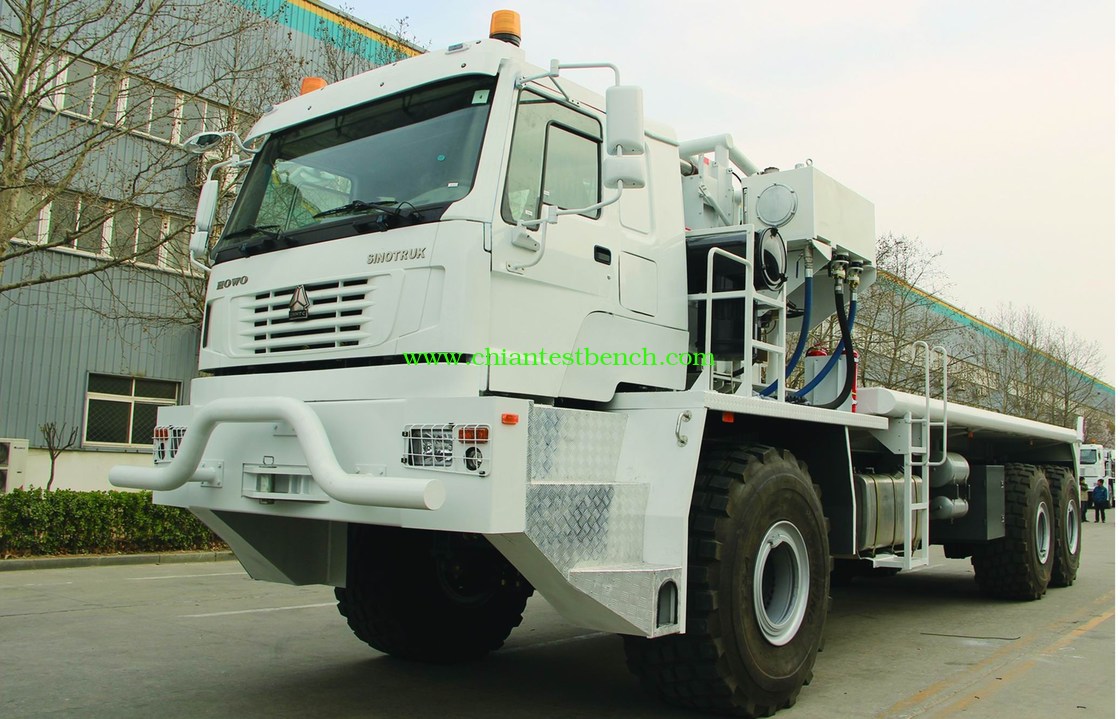

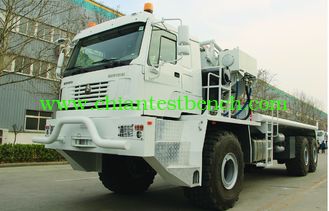

Large Image :  6X6 desert oil field cargo tractor

Product Details:

Place of Origin: Shandong, China
Brand Name: CNHTC
Certification: CCC, ISO, BV, GJB, CQC
Model Number: TAZ4922

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Packaging Details: Nude packing
Delivery Time: 60 days after receiving 30% deposit by T/T
Payment Terms: T/T, L/C, Western Union
Supply Ability: 20000 Unit/Units per Year
Contact Now
Detailed Product Description

    With multifunctions of carrying cargo, towing and skid-mounting, 6x6 desert oil field special vehicle is used to tow and transfer large oilfield derrick, etc. in desert area. With the maximum towing mass 180t, its platform nearly 10m high ca load60t. The chassis adopts CNHTC HOWO cab, imported Cummins engine, ALLISON hydraulic winch, JOST bolster, imported cylinder and pump valves, this vehicle has advanced and reliable performance. It is widely used for fast and efficient transitions of both oilfield derrick and drilling machine platform, and also cargo skid-mounting.

Main parameters and configurations

Model

TAZ4922

Drive type

6x6

Quality parameters

Total mass (kg)

92000

Dimension parameters

Overall dimensions(mm)

14057x3500x4500

Wheel track(mm)

2718/2718

Whell base(mm)

7800+2030

Front/Rear overhang(mm)

2900/1327

Operation parameters

Max gradeability(%)

45%

Min turning diameter(m)

≤49

Max speed(km/h)

80

Fifth wheel

JOST JSK52DV-75 enhanced type

Winch

BRADEN HP100B

Engine

Model

QSX15 600

Power/rev(kw/r/min)

447/2100

Gearbox

Model

ALLISON M6620AR

Velocity ratio

4, 2.68, 2.01, 1.35, 1, 0.67, R5.15

Cab

CNHTC HOWO cab

Tires

29.5R25 desert pattern, single tire on all axles

Axles

1st axle is driving steering axle, 22t; 2nd exle is through drive steering axle and 3rd axle is drive axle, both 35t; drive axles without inter-wheel and inter-axle differential locks

Suspension system

Enhanced heavy suspension, leaf spring front suspension and rigid balanced rear suspension
