CRIA-200 diesel fuel injection pump common rail injector test bench

I'm Online Chat Now

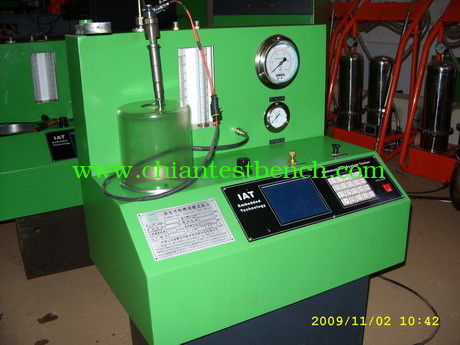

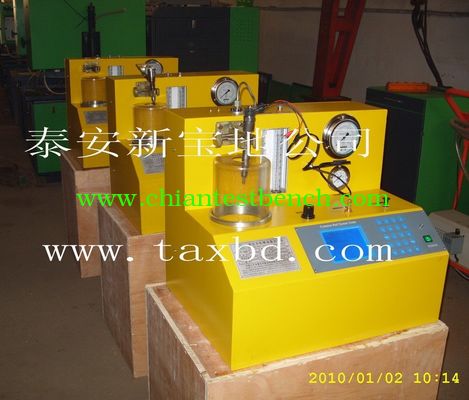

CRIA-200 diesel fuel injection pump common rail injector test bench

China CRIA-200 diesel fuel injection pump common rail injector test bench supplier
CRIA-200 diesel fuel injection pump common rail injector test bench supplier CRIA-200 diesel fuel injection pump common rail injector test bench supplier

Large Image :  CRIA-200 diesel fuel injection pump common rail injector test bench

Product Details:

Place of Origin: Shandong, China
Brand Name: XBD
Certification: CE & ISO
Model Number: CRIA-200

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Wooden case
Delivery Time: 5-8 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 60 sets per month
Contact Now
Detailed Product Description
Material: Steel Color: On Request
Voltage: 220V

CRIA200 Common rail test bench



CRIA200 High-pressure common rail test bench can be used to test the following injector: BOSCH CP1-H, BOSCH CP1-K, BOSCH CP3, DELPHI, SIEMENS, DENSO HP2 AND HP3.



Main Features:

CRIS200 common rail injector test bench is a tool for checking the injectors used on diesel engines, such as BOSCH,DENSO,DELPHI and so on. It allows you to test Common Rail Injectors and Normal Injectors. It can observe injector's spray, measure of the opening pressure of injectors.





Usage:

1. Checking of the solenoid valve of injectors.

2. Measurement of the delivery and overflow of CRI.

3. Watching of CRI injector's spray.

4. Checking of the sealing of CRI.

5. Checking of the opening pressure of injectors.

6. Checking of the sealing of injectors.

7. Watching of the injector's spray



Parameters:

1 Feeding pressure 0-180Mpa
2 Pressure gauge

Feeding pressure gauge : 0-250Mpa

Air gauge :0-1.6Mpa

3 Graduate 90ml/2 piece
4 Fuel tank 2.5L
5 Air in 0.8Mpa , 36L/Min.
6 Electrical power in AC220V/50(60)Hz
