high quality 6X6 large transport tractor chassis for desert

I'm Online Chat Now

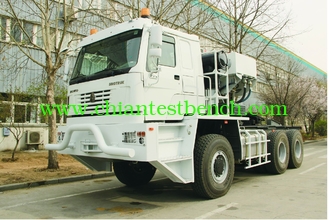

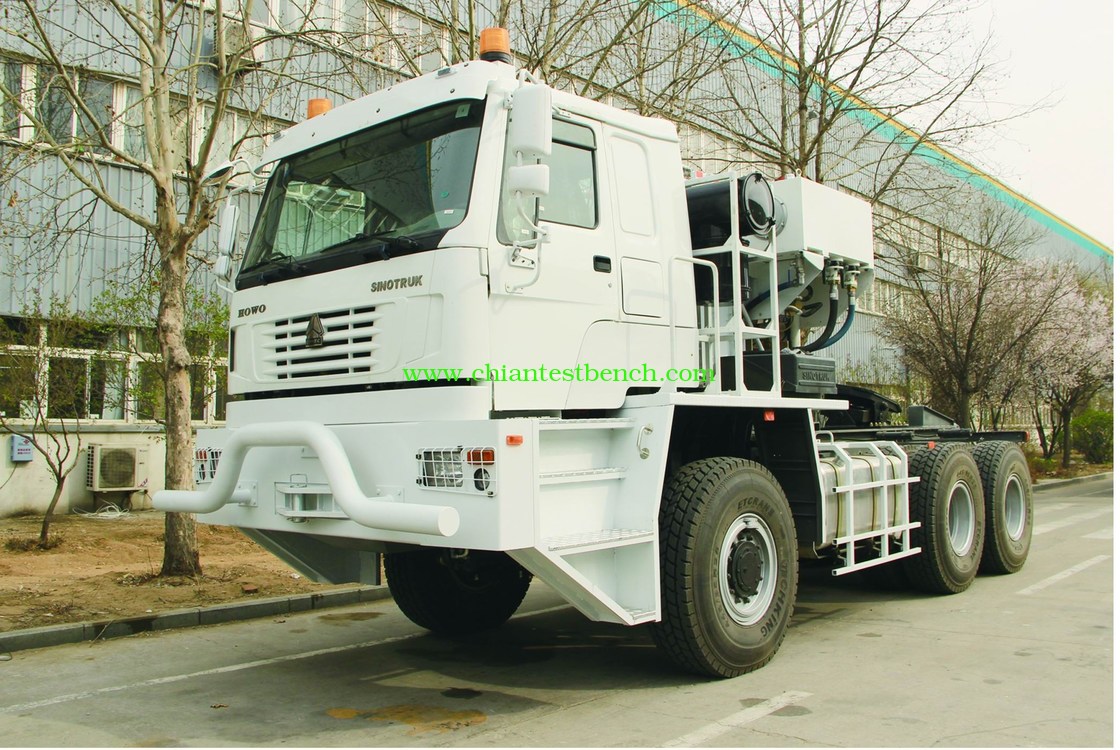

high quality 6X6 large transport tractor chassis for desert

China high quality 6X6 large transport tractor chassis for desert supplier

Large Image :  high quality 6X6 large transport tractor chassis for desert

Product Details:

Place of Origin: Shandong, China
Brand Name: CNHTC
Certification: CCC, ISO, BV, GJB, CQC
Model Number: TAZ4653

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Packaging Details: Nude packing
Delivery Time: 60 days after receiving 30% deposit by T/T
Payment Terms: T/T, L/C, Western Union
Supply Ability: 20000 Unit/Units per Year
Contact Now
Detailed Product Description

    6x6 large transport vehicle adopts CNHTC HOWO cab, imported Cummins engine, ALLISON hydraulic torque converter, large ratio axles, enhanced suspension, etc. Equipped with high-end assembly, such as American Paccar hydraulic winch, JOST bolster, imported cylinder and pump valves, this vehicle is powerful, advanced and reliable. Its maximum towing total mass reaches 110t. It is mainly used on the road, the transition zone of road and gobi. Its overall performance is at the advanced level of the industry.

Main parameters and configurations

Model

TAZ4653

Drive type

6x6

Quality parameters

Total mass (kg)

65000

Dimension parameters

Overall dimensions(mm)

9470x3000x3780

Wheel track(mm)

2540/2060

Whell base(mm)

4000+1650

Front/Rear overhang(mm)

2360/1190

Operation parameters

Max gradeability(%)

30%

Min turning diameter(m)

≤23

Max speed(km/h)

80

Fifth wheel

Heavy fifth wheel, QYZ100

Winch

BRADEN HP100B

Engine

Model

ISXE15  EURO III

Power/rev(kw/r/min)

392/1800

Gearbox

Model

ALLISON 4700P

Velocity ratio

7.63, 6.51, 1.91, 1.43, 1.00, 0.74, R4.80

Cab

CNHTC HOWO cab

Tires

16.00R25 cross-country tread pattern, single tire on front axle, double tires on middle and rear axles

Axles

Double reduction large torque axles with inter-wheel and inter-axle differential locks

Suspension system

Leaf spring on front axle, rigid balanced suspension on middle and rear suspension
