Home ProductsVacuum membrane press machine

High quality LB-TM2480D negative pressure full-automatic upper and lower heating vacuum membrane press machine

I'm Online Chat Now

High quality LB-TM2480D negative pressure full-automatic upper and lower heating vacuum membrane press machine

China High quality LB-TM2480D negative pressure full-automatic upper and lower heating vacuum membrane press machine supplier
High quality LB-TM2480D negative pressure full-automatic upper and lower heating vacuum membrane press machine supplier High quality LB-TM2480D negative pressure full-automatic upper and lower heating vacuum membrane press machine supplier High quality LB-TM2480D negative pressure full-automatic upper and lower heating vacuum membrane press machine supplier High quality LB-TM2480D negative pressure full-automatic upper and lower heating vacuum membrane press machine supplier

Large Image :  High quality LB-TM2480D negative pressure full-automatic upper and lower heating vacuum membrane press machine

Product Details:

Place of Origin: Shandoan, China
Brand Name: YLB
Certification: ISO
Model Number: TM2480D

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD4000.00~USD8000.00 per set
Packaging Details: Plywood case
Delivery Time: 15-25 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 60 sets per month
Contact Now
Detailed Product Description
Color: White And Blue Covered Material: PVC Film
Worktable: One Or Two

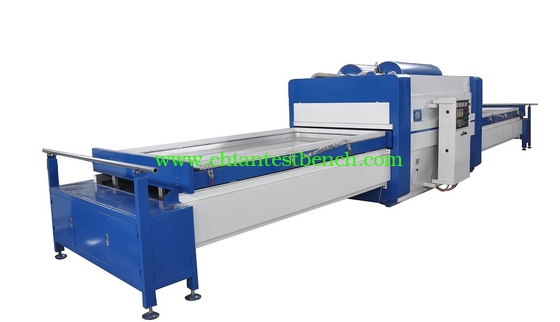

LB-TM2480D full-automatic vacuum membrane press machine

TM2480D (2)

Specifications

1 Power: 27kw
2 Overall Dimension:Overall Dimension
3 pressure: 0.9Mpa
4 Overseas service center available
5 CE

LB-TM2480 vacuum machine just for decoration



Brief Introduction of LB- TM2480 vacuum machine just for decoration



TM2480 vacuum machine just for decoration can be used to paste PVC on furniture, cabinets, speakers, relief doors, decoration panels for walls and other abnormal decoration shapes. With a special silicon sheet, it can also work with hot transfer and veneer.





Technical Specification Of LB- TM2480 vacuum machine just for decoration



Overall Dimension



10800×2100×1600mm

Platen Size



2500×1300×60mm

Rated working pressure



Negative pressure ≥-0.095Mpa
Power 27kw
Heating upper and lower heating

Actual Power Consumable



8kw

Weight



2T
Voltage 380V 50HZ / 220V 60HZ
Packing Size 3500×2100×2400mm



QQ20181116151009

Features of LB-TM 2480 vacuum machine just for decoration



1. The electronic part of vacuum machine just for decoration is fully automatic and digitalized control. The components are produced by famous domestic enterprises with good quality. The temperature is controlled by computer chips so that the heating speed is adjustable and the temperature can be perfectly managed.



2. Use infrared heating system and high quality heat preservation material, which can ensure even heating and energy saving.
3. This machine uses integrated movement electromotor. It produces less noise and seldom breaks down.
4. This machine uses Germany technology vacuum pump. It is stable and reliable and the maintenance work is simple. (You can also opt for German-made vacuum pump, which is strong and tough).
5. Large volume vacuum tank. It charges with double channels so that it can work with strong power.

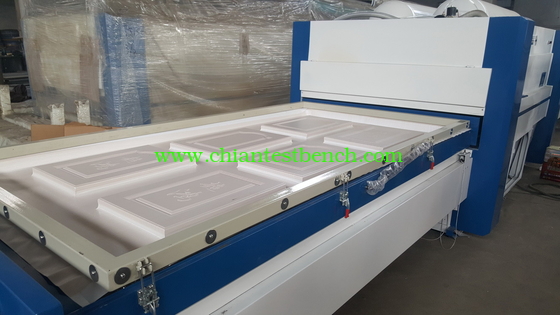

Vacuum press machine (3).jpg

Exterior size 5800(one plate)/8800(double plate)×1500×1400mm
Working plate size 2550×1150/1300mm(inner size)
1150mm for PVC door, width of PVC film more than1260mm
1300mm for cabinet, width of PVC film more than 1400mm
Maximum height of the work piece 50mm
Rating working pressure Negative Pressure≥-0.095Mpa
General Power 15kW(the power may be different for different devices)
Actual power consumption About 5kw
Weight About 2/2.5T
Top temperature 180°C



Customer visiting

clients (1).png





Package

The package is wooden case or plywood case, if you need, we can also pack the products according to your demands

package



Contact

TAIAN XINBAODI EXPERIMENTAL EQUIPMENT CO., LTD

Add : NO. 1#-2-402,WEST OF DONGYUE STREET, TAIAN CITY, SHANDONG, CHINA

Mob:0086-13562896072

WeChat: 0086-13562896072

WhatsApp: 0086-13562896072

Skype: testbench201010

E-mail: testbenchina*yahoo.com

Website: https://xinbaodi.en.alibaba.com







FAQ

Q: How many days to produce this test bench?

A: It need 5-20 days to produce the test bench.

Q:How can I pay for it?

A:We support TT payment, West Union, and L/C etc.

Q:How to sign an order?

A:We can sign an order offline or online on Ali.

Q:How long of warranty?

A:12 months

Q:Do you have some tools?

A:Yes, we have many kinds of tools and spare parts.
