HOWO 8X4 Cargo Truck ZZ1317N466GD1

I'm Online Chat Now

HOWO 8X4 Cargo Truck ZZ1317N466GD1

China HOWO 8X4 Cargo Truck ZZ1317N466GD1 supplier

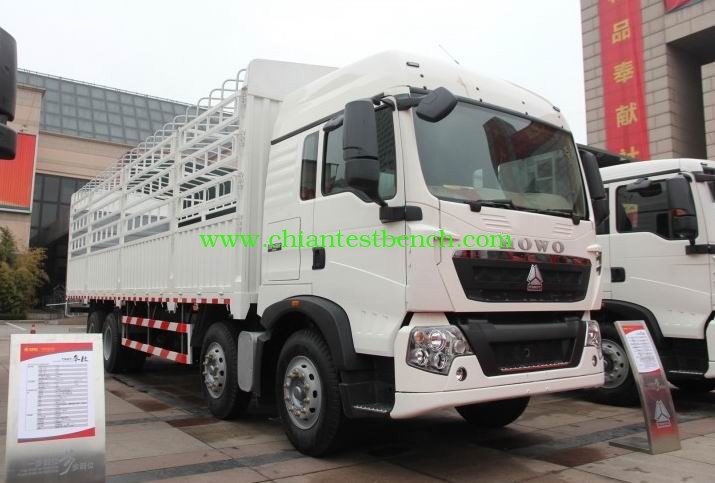

Large Image :  HOWO 8X4 Cargo Truck ZZ1317N466GD1

Product Details:

Place of Origin: Shandong, China
Brand Name: HOWO
Certification: ISO
Model Number: ZZ1317N466GD1

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Packaging Details: Nude packing
Delivery Time: 30 days after receiving 30% deposit by T/T
Payment Terms: L/C,T/T
Supply Ability: 20000 Unit/Units per Year
Contact Now
Detailed Product Description



Quick Details

  • Condition: New
  • Capacity (Load): 31 - 40t
  • Drive Wheel: 8x4
  • Horsepower: 251 - 350hp
  • Transmission Type: Manual
  • Emission Standard: Euro 4
  • Fuel Type: Diesel
  • Engine Capacity: > 8L
  • Size: 11990*2496*3535
  • Gross Vehicle Weight: 31000
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: HOWO
  • Model Number: ZZ1317N466GD1
  • Color: White, optional
  • Wheelbase: 1800+4600+1350mm
  • Engine model: MC07
  • Maximum output power: 247KW
  • Transmission Model: HW12710C
  • Tyre model: 10.00R20
  • Tyre type: Steel wire tyre
  • Cab passages number: 3
  • Carriage type: stake
  • carriage dimension: 9520x2400x800mm



Specifications



HOWO 8X4 Cargo Truck / Stake cargo Truck       Parameters

Chasiss Model

ZZ1317N466GD1

Weight Parameter

Complete Vehicle Kerb Mass(kg)

11280

Maximum authorized total mass (kg)

31000

Maximum authorized towed total mass(kg)

18000

Dimension Parameter

External Dimensions(mm)

Length

12000

Width

2496

Height

3105,3405

wheelbase(mm)

1800+4600+1350

Minimum Ground Clearance(mm)

260

Performance Parameter

Maximum Speed(km/h)

110

Economical Speed(km/h)

85

Maximum Gradeability(%)

>30

Turning diameter(m)



Recommended Configuration

Engine

Engine Type

MC07.34-40



Rated power(kW)/Rev(r/min)

248/2300

Maximum Torque(N*m)/Rev(r/min)

1250/1200-1800

Transmission

HW10

Clutch(mm)

430

Rear Axle

Type

EQ153

Speed Ratio



Fuel Tank(L)

300

Chassis Cross-section(mm)

F965R865×280×80×(8+4)

Suspension(Front,Back)

11/11/10

Tyre

10.00-20
