Remote control lawn mower/hay mower/field mower for agricultural machinery

I'm Online Chat Now

Remote control lawn mower/hay mower/field mower for agricultural machinery

China Remote control lawn mower/hay mower/field mower for agricultural machinery supplier
Remote control lawn mower/hay mower/field mower for agricultural machinery supplier Remote control lawn mower/hay mower/field mower for agricultural machinery supplier Remote control lawn mower/hay mower/field mower for agricultural machinery supplier Remote control lawn mower/hay mower/field mower for agricultural machinery supplier Remote control lawn mower/hay mower/field mower for agricultural machinery supplier Remote control lawn mower/hay mower/field mower for agricultural machinery supplier

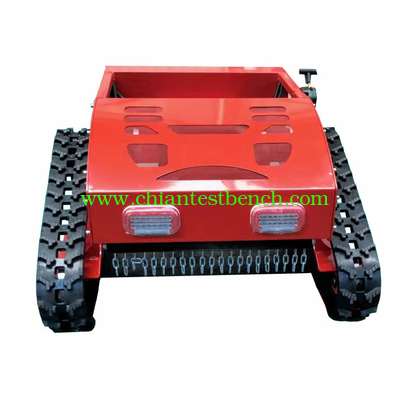

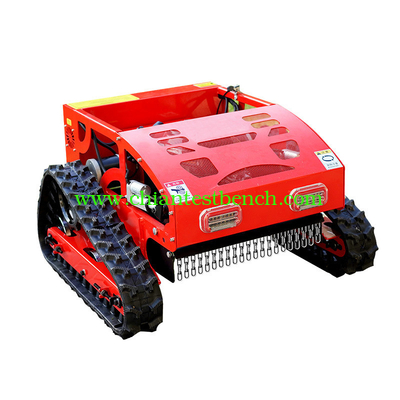

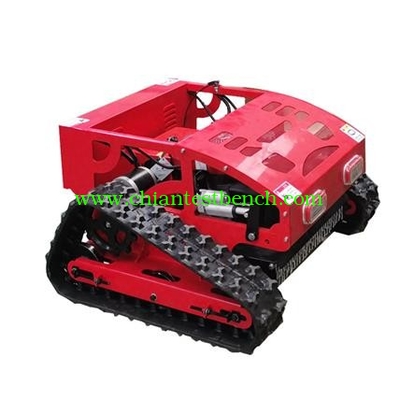

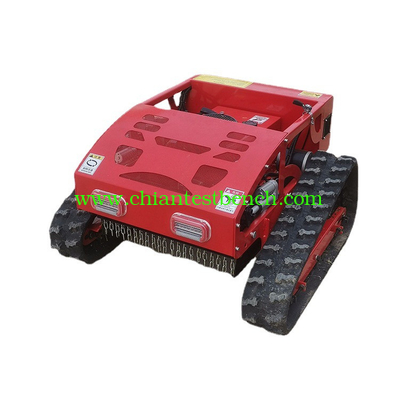

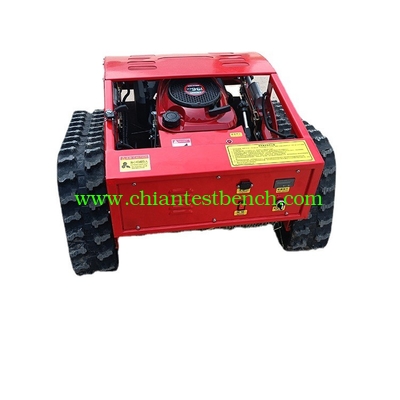

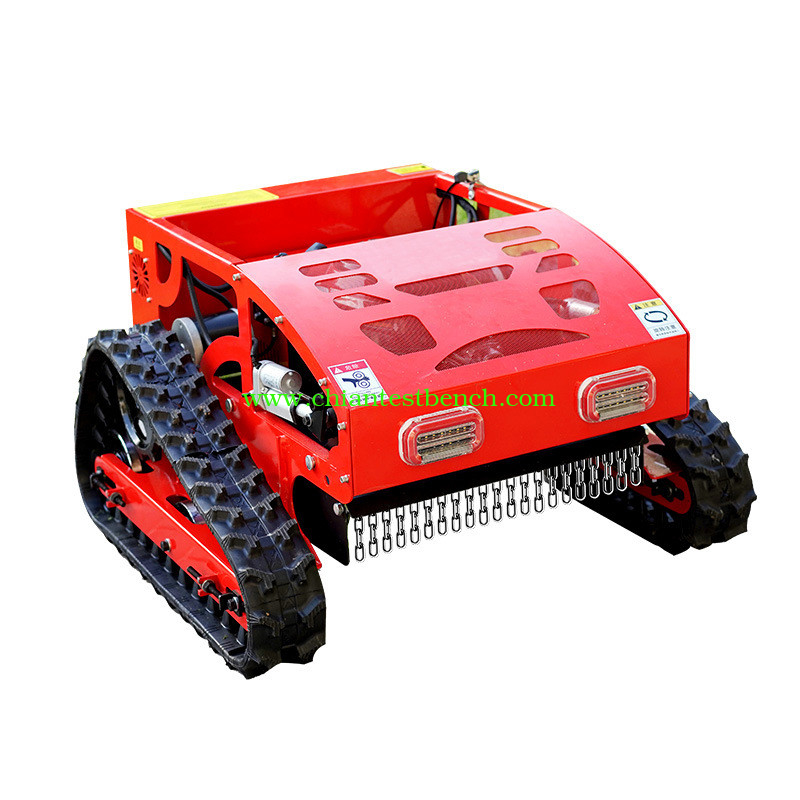

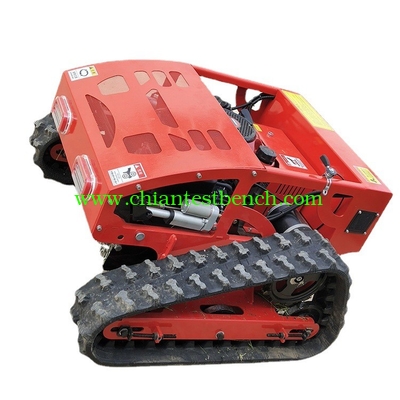

Large Image :  Remote control lawn mower/hay mower/field mower for agricultural machinery

Product Details:

Place of Origin: SHANDONG CHINA
Brand Name: XBD
Model Number: XBD-LM11

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: 2050~2230
Packaging Details: wooden case or plywood package
Delivery Time: 10-15 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per week
Contact Now
Detailed Product Description
Warranty: 1 Year Power Type: Petrol / Gas
Color: Red Cutting Height: 30-80mm
Weight: 130kg Application: Garden,Park,Greenbelt,Grassland,Golf Course
Condition: New Type: Robotic Mowers
Product Name: Petrol Gasoline Lawn Mower,Garden Automatic Intelligent Robotic Lawn Mower

Product Description
Product Description
Hot Sale Gas Intelligent Remote Control Robot
Lawn Mower with Crawler Walking


Remote control lawn mower/hay mower/field mower for agricultural machinery

Remote control lawn mower/hay mower/field mower for agricultural machineryRemote control lawn mower/hay mower/field mower for agricultural machinery





Product Paramenters
Product Paramenters
Product name
Remote control lawn mower
Machine size
930*860*580mm
Packing size
1060*960*810mm
Whole machine weight
130kg
Cutting width
550mm
Adjustable height
10-150mm
Cutting height
20-150mm
Walking speed
0-6km/h
Working slope
0-30°
Minimum distance from the ground
20mm



1, Preparation before starting the remote control mower
(1)Be sure to confirm the tightness of screws of all parts before starting up.
(2)Turn on the machine power key switch, pull back the right control lever and hold it, then press the switch key of the remote
controller to turn on the remote controller.
(3)When the remote control is turned on, a "drip" will appear, indicating that the machine matches the remote control normally.
(4)engine start;
a,Release the brake on the right side of the engine (also disconnect the flameout switch);
b,Turn the left throttle counterclockwise to the end (so as to open the engine throttle at the same time);
c,Pull hard on the pull rope of the hand pull plate to start the engine;
d,Adjust the throttle to the proper speed in time after starting the engine;
e,Operate the remote control to cut grass.
2,Remote control description:
D/R switch (large and small rudder): adjust the walking speed of the machine (the factory default is high speed gear) The left
joystick controls the machine to walk forward and backward, and the right joystick controls left and right turns
5 Channel (two-stage switch):The cutter head rises and falls to adjust the cutting height of the cutter head.
Rudder fine adjustment (left-right adjustment): When adjusting the walking speed of the machine, the electronic adjustment in the
machine will make a "drip" sound. Only then can the "Rudder fine adjustment" button be used until the electronic adjustment in the
machine does not make a sound.
Throttle fine adjustment (up and down adjustment): the same principle as the "rudder fine adjustment" button.
Power switch: push up to turn on the remote control, and pull down to turn off the remote control.

Company Profile
Company Profile
Our company specialized in quality so we're very confidence in our products. Also there're many kinds of equipments to choose. If you're not satisfied with these equipments, we have PTG(professional technical group ) to design what you want to buy. So if you have any questions please contact with us at any time. We're very pleased to serve you and we believe in great service all the time.
Remote control lawn mower/hay mower/field mower for agricultural machinery
Remote control lawn mower/hay mower/field mower for agricultural machinery
Remote control lawn mower/hay mower/field mower for agricultural machinery

FAQ
FAQ
Q:Can I visit you?Are you trading company or manufacturer?
A:Sure, we are manufacturer. Our factory is located in Tai'an, Shandong, China, and has more than 20 years of professional production experience.Warmly welcome to visit our factory if it's convenient for you, please contact us to make an appointment and supply the pick-up service and hotel reservation service.
Q:How many days do you need for delivery?
A: Some of our machines have stock available,once you ordered and made payment, we will deliver it asap. If it has no stock, we may need around 15-20 days for new production. Of course the delivery time is determined by the order you purchase. We will try our best to produce faster if your schedule is urgent.
Q: Can I negotiate the prices for the machine?
A:Yes, we may consider great discounts for mass buying quantity, the more you buy, the lower our price will be. Please contact with our sales and get the catalogue and quotation for your request .
Q:What is your price term and payment term?
A: Price term: EXW,FOB,CFR,CIF ect. ,Payment term: T/T or online on Alibaba.
Q:Can you give warranty of your products?
A:14 months warranty for our product, whole life technical support. we have professional business managers who can serve clients in 24 hours.
Q:How to install and operate the machine?
A:Most of the machine are fully assembled in our factory, so just open and remove the package and get power connected. For some machines, the main parts are well assembled, you might need to install some parts which are easy to install and any problem may have can contact with us for more information for installation . About operate the machine, we have operation instructions for you.
Q:Do you have some tools?
A:Yes, we have many kinds of tools and spare parts.
