ZZ1167M4617 SINOTRUK HOWO BULK CARGO TRUCK

I'm Online Chat Now

ZZ1167M4617 SINOTRUK HOWO BULK CARGO TRUCK

China ZZ1167M4617 SINOTRUK HOWO BULK CARGO TRUCK supplier

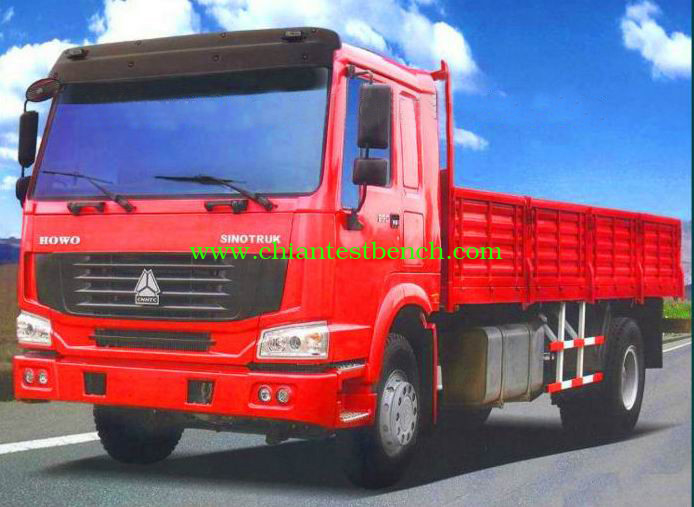

Large Image :  ZZ1167M4617 SINOTRUK HOWO BULK CARGO TRUCK

Product Details:

Place of Origin: Shandong, China
Brand Name: sinotruck
Certification: ISO
Model Number: ZZ1167M4617

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Packaging Details: Nude packing
Delivery Time: 30 days after receiving 30% deposit by T/T
Payment Terms: L/C,T/T
Supply Ability: 20000 Unit/Units per Year
Contact Now
Detailed Product Description



Quick Details

  • Condition: New
  • Capacity (Load): 11 - 20t
  • Drive Wheel: 4x2
  • Horsepower: 251 - 350hp
  • Transmission Type: Automatic
  • Emission Standard: Euro 2
  • Fuel Type: Diesel
  • Engine Capacity: > 8L
  • Size: 6000X2250X2450X
  • Gross Vehicle Weight: 3000
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: SINOTRUK
  • Model Number: ZZ1167M4617
  • Diesel: 4-stocks direct injection diesel engine
  • Number of cylinder: 6
  • Engine oil filling quantity: 19L
  • Cooling system filling quantity: 40L
  • Transmission: 8JS100B, synchromesh, 6 forward & 1 reverse
  • Dimension: 6065X2300X600
  • Color: Red, Yellow, White, Blue



Specifications



1. SINOTRUK Manufacturer
2. original price with high quality
3. Fast delivery




Model

ZZ1167M4617

Engine

Brand

SINOTRUK

Diesel

 4-stocks

Engine model

WD615.62, Euro II or Euro III (EGR);

WD615.92E, emission standard

6-cylinder in-line with water cooling, turbo-charging and intercooling

Maximum output

266hp (196KW) at 2200 rpm

Maximum torque

1100Nm at 1100-1600 rpm

Number of cylinder

6

Displacement

9.726L

Bore

126mm

Stroke

130mm

Compression ratio

17.5:1

Specific fuel consumption

198g/KWh

Engine oil filling quantiy

40L

Clutch

Single-plate dry coll-spring clutch, diameter 420mm, hydraulically operating

with air assistance

Transmission

8JS100B, synchromesh, 6 forward & 1 reverse

Front Axle

Steering with double T-cross section beam

Rear Axles

Pressed axle housing, single reduction with hub reduction and differential lock

Chassis

Frame

U-profile parallel ladder frame with section

of 300x80x8 mm, all cold riveted cross

members

Front Suspension

9 semi-elliptic leaf springs with hydraulic

telescopic double-action shock absorbers

and stabilizer

Rear suspension

15 leaf semi-elliptic leaf springs with hydraulic

telescopic double-action shock absorbers

Steering

ZF8089, hydraulic steering with power asssistance

Ratio: 22.2-26.2

Braking System

Service brake

Dual circuit compressed air brake

Parking brake

(emergency brake)

Spring energy, compressed air operation

on rear wheels

Auxiliary brake

Engine exhaust brake

Option

ABS

Wheel & Types

Rims

8.5-20, 10 hole-steel

Tyres

12.00-20 tube

Option

12R20 tube, 12.00-24 tube,

12R22.5 tubeless

Cab

Standard cab

Electrical Syetem

Operating voltage

24 V, negative grounded

Starter

24 V, 7.5 Kw

Alternator

28 V, 1500W

Batteries

2 X 12 V, 165Ah

Dimensions

Wheel base

4600

Front wheel track

2022/2041

Rear wheel track

1850

Front overhang

1500

Rear overhang

2277

Approach angle (°)

23

Departure angle (°)

15

Overall length

8377

Overal width

2496

Overall heigth

3048

Cargo body size

6066x2300x600

Weight

Loading capacity

8010

Chassis dead weight

7860

Gross vehicle weight

16000

Front axle loading capacity

7000

Rear axle loading capacity

13000

Performance

Maximum driving speed

102

Maximum gradeability

39

Minimum ground clearance

298

Minimum turning circle

18.6

Fuel consumption

26
