CRS-200 common rail injector tester

I'm Online Chat Now

CRS-200 common rail injector tester

China CRS-200 common rail injector tester supplier

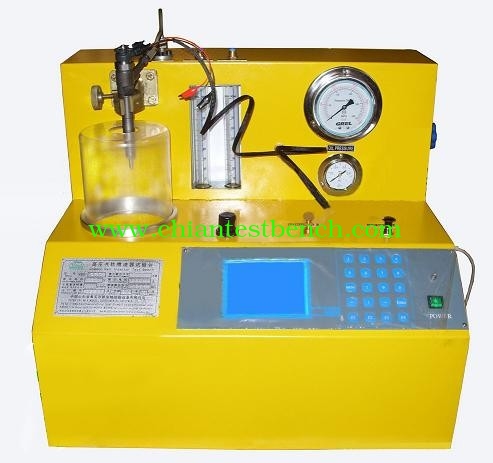

Large Image :  CRS-200 common rail injector tester

Product Details:

Place of Origin: Taian China
Certification: ISO9001
Model Number: CRS-200

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: wooden case
Delivery Time: 10 days
Payment Terms: T/T
Supply Ability: 100 sets a month
Detailed Product Description
Color: Green, Blue, Yellow Or On Request



CRIS200 High-pressure common rail tester can be used to test the following injector: BOSCH CP1-H, BOSCH CP1-K, BOSCH CP3, DELPHI, SIEMENS, DENSO HP2 AND HP3.

Main Features:

CRIS200 common rail injector tester is a tool for checking the injectors used on diesel engines, such as BOSCH,DENSO,DELPHI and so on. It allows you to test Common Rail Injectors and Normal Injectors. It can observe injector's spray, measure of the opening pressure of injectors.

Usage:

1. Checking of the solenoid valve of injectors.

2. Measurement of the delivery and overflow of CRI.

3. Watching of CRI injector's spray.

4. Checking of the sealing of CRI.

5. Checking of the opening pressure of injectors.

6. Checking of the sealing of injectors.

7. Watching of the injector's spray



Parameters

1. Feeding pressure : 0-180Mpa.

2. Pressure gauge : Feeding pressure gauge : 0-250Mpa

                   Air gauge :0-1.6Mpa.

3. Graduate :90ml/2 piece.

4. Fuel tank :2.5L.

5. Air in: 0.8Mpa ,  36L/Min.

6. Electrical power in: AC220V/50(60)Hz.
