● Axle: 12-ton BPW axle, three axles.
● Suspension: Air suspension, front axle has promote function
● Tire: 425/65R22.5 tires, no spare tire. 2 Catenary spare tire racks
● King pins: 90 #
● ABS: Domestic
● Brake valve: WABCO
● Brake chamber: 30; T30/30
● Parking brake: pneumatic
● Out rigger: 40 tons two-speed, single-action
● The main frame Specifications: 500X16X6X16mm; Material: 16Mn
● Over hanging Beam: cross-section type. Material: Q23
● Tool box: 1000mm
● Protective screening: Aluminum.
● Cabinet Material: Insulation sandwich panel.
● Cabinet’s floor: Diamond Plate (Aluminum 3mm).
● The rear cabinet door frame: Stainless steel

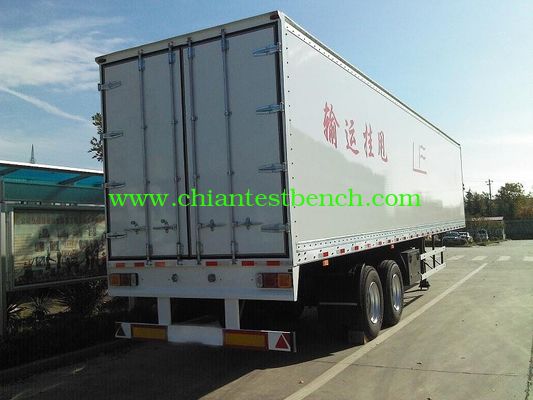

● Cabinet door: rear double door style. LED lights in cabinet.
● Cabinet locking mechanism: two locking lever and accessories (stainless steel parts)
● Cabinet tail appendages: wind hook, rubber buffer block, reflective signs, the ladder.
● Body Light: LED
● Optional parts (need additional price):
1. folding floor hooks.
2. side cargo mounting bracket.

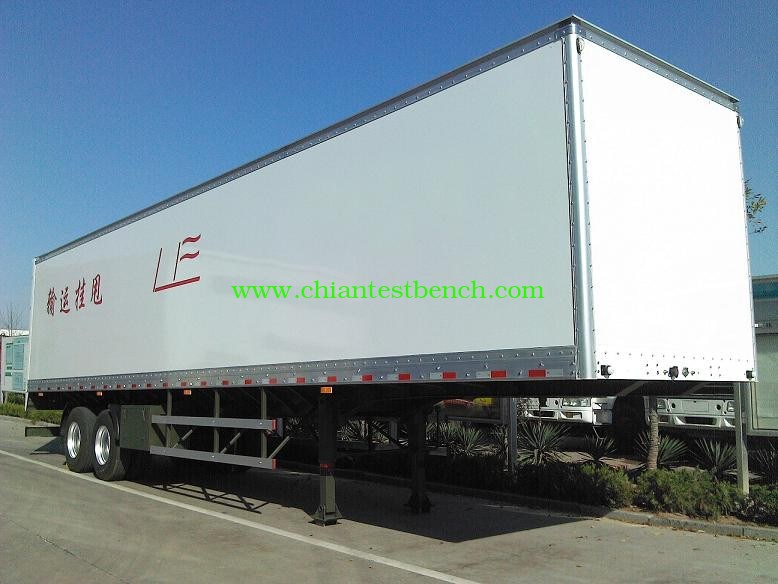

●.Cabinet outside Dimensions: 13600X2480X2700mm;

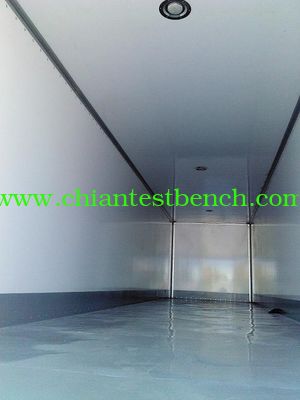

● Cabinet inside Dimensions: 13430X2310X2490mm,
● Overall Dimensions: 13650X2480X4250mm (approx.)
● Vehicle Type: ST9404X
