Low Price Common rail injector repair diagnostic test bench Type CRS 706

I'm Online Chat Now

Low Price Common rail injector repair diagnostic test bench Type CRS 706

China Low Price Common rail injector repair diagnostic test bench Type CRS 706 supplier
Low Price Common rail injector repair diagnostic test bench Type CRS 706 supplier Low Price Common rail injector repair diagnostic test bench Type CRS 706 supplier Low Price Common rail injector repair diagnostic test bench Type CRS 706 supplier Low Price Common rail injector repair diagnostic test bench Type CRS 706 supplier Low Price Common rail injector repair diagnostic test bench Type CRS 706 supplier

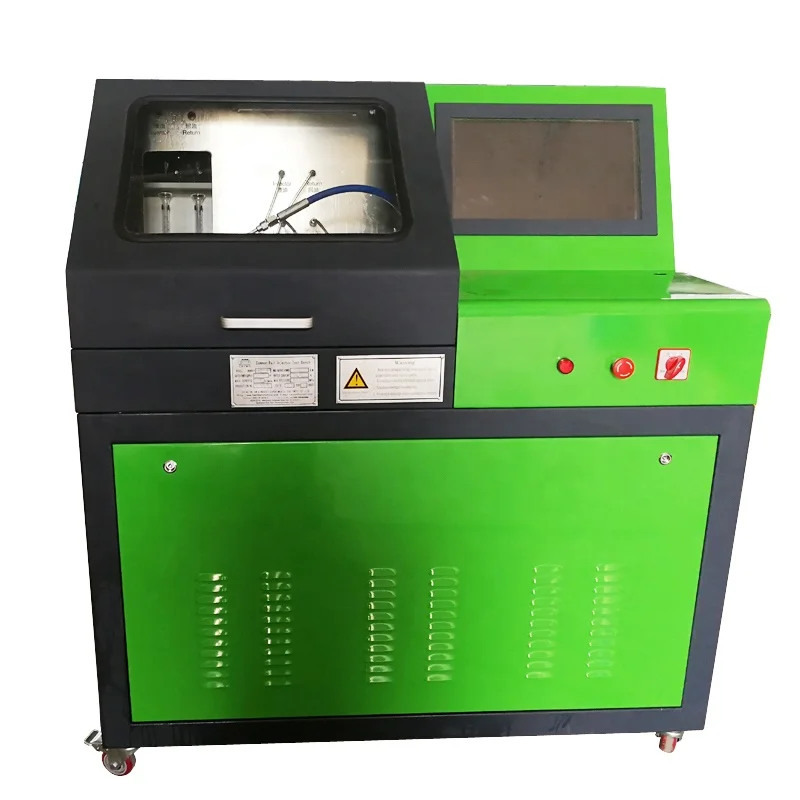

Large Image :  Low Price Common rail injector repair diagnostic test bench Type CRS 706

Product Details:

Place of Origin: Shandong, China
Brand Name: XBD
Certification: ISO CE
Model Number: CRS706

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD2766.00-USD2928.00 per set
Packaging Details: wooden case
Delivery Time: 15-20 work days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Power: 5.5KW Voltage: 220v-380v
Warranty: 1 Years Usage: Test Diesel Injector Performance
Type: Injector Test Bench Color: Green Or On Your Request
Product Name: Common Rail Injector Test Bench Applicable Models: Diesel Car
Function: Test Common Rail Injector Weight: 350kgs
Application: Test Common Rail Pump Size: 150mm*95mm*130mm
Keywords: Common Rail Injector Test Bench Pressure: 0-1800bar
Packing: Plywood Case

Product Description

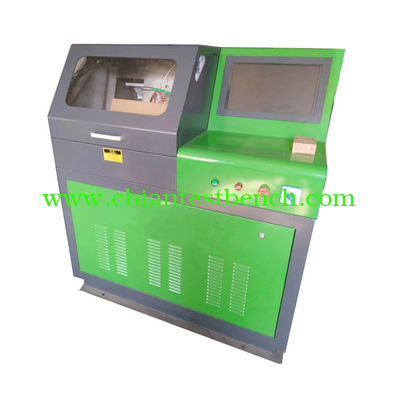

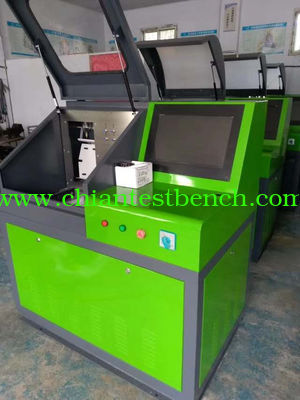

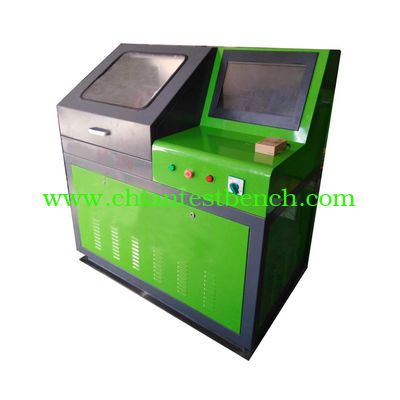

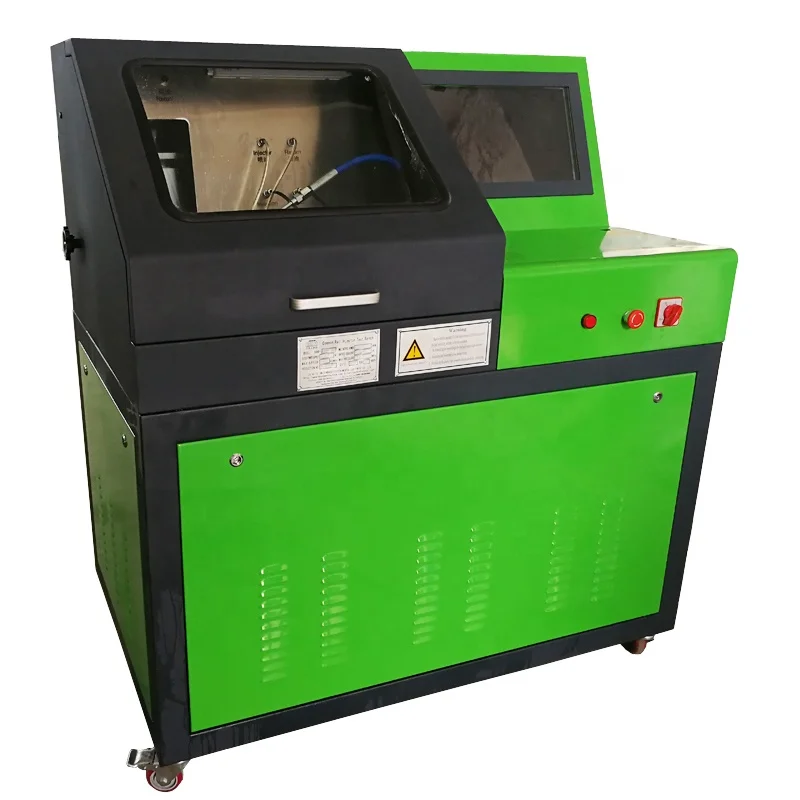

CRS 706 high pressure common rail injector test bench
CRS706 Fuel Injection Test Bench is newly designed by our company for testing common rail fuel injector, adopting 0~1800bar rail force, freely regulate the rail pressure, and can test fuel injector of BOSCH, SIEMENS, DELPHI, DENSO, etc.. It is controlled by industrial computer, and has windows system, and 19 inches LCD monitor. Fuel measuring system adopts measuring cup (standard 2 cups, and can add 2-6 cups as required by clients). More than 400 kinds of inner fuel injector data can be checked and stored. It has reliable performance, accurate measurements, and organic-glass protection door. It is easy and safe to operate.
1
The rated output power
5.5KW
2
The main power supply
380VAC/
3
Number of phase
3-phase
4
Frequency
50 Hz/60Hz
5
Electric current
30A (Max)
6
Oil temperature control
heating/air cooling
7
Oil temperature setting
40°C
8
Temperature of using environment
<35°C
9
The maximum common rail pressure
180Mpa
10
Common rail pump
Bosch CP3.3
11
Control circuit voltage
DC24V/DC12V
12
ECU internal booster
0-200VDC(Max)
13
Test Oil tank capacity
19L
14
Noise level
<85dB
15
Weight
350kg
16
Net size (Height *width *length)
141mm*85mm*120mm
17
Packaging size(Height *width *length)
150mm*95mm*130mm
Low Price Common rail injector repair diagnostic test bench Type CRS 706
Low Price Common rail injector repair diagnostic test bench Type CRS 706
Low Price Common rail injector repair diagnostic test bench Type CRS 706

Common Rail Test Bench Features:
1, Timely controlled by industrial computer, windows operating system, touching screen operation.
2, Data displayed on 19 inch LCD monitor.
3, Adopt 0~1600bar rail force caused by high pressure common rail fuel injection pump.
4, Timely measure the rail force, and has protection for high pressure.
5, Fuel injector pulse width of drive signal and frequency can be regulated.
6, Can freely set times and duration of injections.
7, More than 400 kinds of injector data can be checked and stored.
8, Short- circle protection, has protective Shield, easy to operate.
9, Accurate measurement, simple operation, energy saving and low noise.
  •

  • Functions:
1, Test Brands: BOSCH,DENSO,DELPHI,SIEMENS;
2, Test 2 pieces common rail injector at one time
3, Test leak tightness of high pressure common rail diesel fuel injector.
4, Test estimated injection
5, Test maximum fuel quantity
6, Test launching fuel quantity
7, Test returned fuel quantity
8, Test average fuel quantity
9, Check and store data.
Low Price Common rail injector repair diagnostic test bench Type CRS 706





Packing&Shipping
The package is wooden case or plywood case, If you need, we can also pack the
products according to your demands.
Low Price Common rail injector repair diagnostic test bench Type CRS 706
Low Price Common rail injector repair diagnostic test bench Type CRS 706
Low Price Common rail injector repair diagnostic test bench Type CRS 706
Low Price Common rail injector repair diagnostic test bench Type CRS 706
Company Introduction
Our company is located in Taian City,Shandong Province, China. Our company is a leading manufacturer specializing in the production and export of diesel fuel injection system test equipment and vacuum laminating machine, which is available for traditional diesel fuel injection pump test bench, common rail (CR) pump and injectors test bench, large special oil pump test bench, PT-CUMMINS pump and injectors test stand, in-line electronic controller pumps test system, EUI/EUP test system, nozzle tester, diesel tank cleaning machine and assemble and disassemble tools of the pumps. With introduced technology from Italy and our own advanced technical teams, our products have reliable quality and good prices, and selling well in domestic and overseas auto repair industry. Our products have passed ISO9001:2000 quality certificate.
Low Price Common rail injector repair diagnostic test bench Type CRS 706
Low Price Common rail injector repair diagnostic test bench Type CRS 706
Low Price Common rail injector repair diagnostic test bench Type CRS 706

Our Services & Strength

Taian Xinbaodi Test Equipment Co., Ltd., pecially produced fuel injection pump test bench in China for 20 years, we have excellent engineers and designers for your order.Our company specialized in quality so we're very confidence in our products. Also there're many kinds of equipments to choose.So if you have any questions please contact with us at any time. We're very pleased to serve you and we believe in great service all the time.
Low Price Common rail injector repair diagnostic test bench Type CRS 706
Low Price Common rail injector repair diagnostic test bench Type CRS 706
Low Price Common rail injector repair diagnostic test bench Type CRS 706
FAQ
Q:Can I visit you?Are you trading company or manufacturer?
A:Sure, we are manufacturer. Our factory is located in Tai'an, Shandong, China, and has more than 20 years of professional production experience.Warmly welcome to visit our factory if it's convenient for you, please contact us to make an appointment and supply the pick-up service and hotel reservation service.
Q:How many days do you need for delivery?
A: Some of our machines have stock available,once you ordered and made payment, we will deliver it asap. If it has no stock, we may need around 15-20 days for new production. Of course the delivery time is determined by the order you purchase. We will try our best to produce faster if your schedule is urgent.
Q: Can I negotiate the prices for the machine?
A:Yes, we may consider great discounts for mass buying quantity, the more you buy, the lower our price will be. Please contact with our sales and get the catalogue and quotation for your request .
Q:What is your price term and payment term?
A: Price term: EXW,FOB,CFR,CIF ect. ,Payment term: T/T or online on Alibaba.
Q:Can you give warranty of your products?
A:14 months warranty for our product, whole life technical support. we have professional business managers who can serve clients in 24 hours.
Q:How to install and operate the machine?
A:Most of the machine are fully assembled in our factory, so just open and remove the package and get power connected. For some machines, the main parts are well assembled, you might need to install some parts which are easy to install and any problem may have can contact with us for more information for installation . About operate the machine, we have operation instructions for you.
Q:Do you have some tools?
A:Yes, we have many kinds of tools and spare parts.
