XBD-619S fashion design beautiful appearance digital display data diesel fuel injection pump test bench

I'm Online Chat Now

XBD-619S fashion design beautiful appearance digital display data diesel fuel injection pump test bench

China XBD-619S fashion design beautiful appearance digital display data diesel fuel injection pump test bench supplier
XBD-619S fashion design beautiful appearance digital display data diesel fuel injection pump test bench supplier XBD-619S fashion design beautiful appearance digital display data diesel fuel injection pump test bench supplier XBD-619S fashion design beautiful appearance digital display data diesel fuel injection pump test bench supplier XBD-619S fashion design beautiful appearance digital display data diesel fuel injection pump test bench supplier XBD-619S fashion design beautiful appearance digital display data diesel fuel injection pump test bench supplier

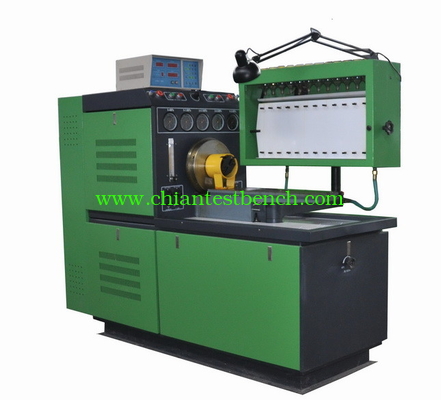

Large Image :  XBD-619S fashion design beautiful appearance digital display data diesel fuel injection pump test bench

Product Details:

Place of Origin: Taian China
Brand Name: XBD
Certification: ISO9001, CE
Model Number: XBD-619S

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD2500.00~USD6000.00 per set
Packaging Details: Wooden case
Delivery Time: 15 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Color: Green, Red, Yellow Or On Request Material: Steel
Power: 380V/220V Voltage: 7.5/11/15/18.5/22kw
Weight: 980kgs

I  The main features of test bench

1. The main principal axis revolution, oil metering counting, Oil temperature control, pressure display use digital display

2. The touching type oil proof switch can realize left and right two sides operation .the system us stable and reliable

3. The host machine frequency conversion speed regulation . The regulation speed is about 4000 revolution /min

4. The manual speed regulation and rotate speed multi-gear setting

5. 0-0.25Mpa air supply output , built-in type blast pump

6. It has DC12V and DC24V stable power output

7. The host machine is channel steel structure; the complete structure is compact and steady

8. the shell use static painting, it is beautiful

9. The oil sump tank can realize right and left rotation , and also up and down regulation

10. The test bench has urgent brake switch

11. It adopts advanced frequency conversion governor, with high precision rotate speed

12. The test bench have under voltage, over pressure, super heating and over loading protection function

13. Low noise of test bench

14. The test bench has high mechanical efficiency and save energy

II  The usage of the diesel fuel Injection Pump test bench

According to the different pump. the test bench use proper attachment, and carry out the following testing:

1. Test different cylinder oil supply condition and oil supply evenness under different revolution

2. Test oil supply starting point and interval angle

3. Governor working performance checking and regulation

4. The pressure compensation performance test and checking

5. The distribution pump working performance test and regulations

6. The cold starting device and solenoid valve performance checking

7. The distribution pump inner pressure test under different revolution

8. The injection pump seal performance test

9. Check the oil transfer pump self priming performance

10.The built-in high reliability horizontal type inflation pump

III  The main technical data of test bench

Model XBD-619S
The principle axis revolution: 0-4000r/min. the two directions is optional
test oil injection pump cylinders 12
The principle axis revolution fluctuate ±1r/min
The host machine power 5.5kw ,7.5kw,11kw,15kw,18.5kw,22kw
The oil supply drive motor power 1.1kw
Principle axis center to center spacing working bench height 125mm
The oil metering counting 0-1000 times , one gear per 50 times
Revolution, counting display four digital display
The pressure, oil temperature display three digital display
The oil temperature automatic control 40℃±2℃
Gas source pressure 0-0.25Mpa
The oil tank volume ≥ 40L
The oil pump oil supply ≥ 10L/Min
The oil filter precision
The glass measuring cylinder volume 45ml, 150ml
The oil pressure meter 1.5 grade : 0-0.6Mpa;0-6Mpa;0-0.16Mpa;0-1.6Mpa
The standard injector ZS12SJI
Cooling method forced wind cooling
Test bench overall dimension (mm) 2300×1160×1780
Test bench weight 980kg



XBD-619S fashion design beautiful appearance digital display data diesel fuel injection pump test bench



XBD-619S fashion design beautiful appearance digital display data diesel fuel injection pump test bench
