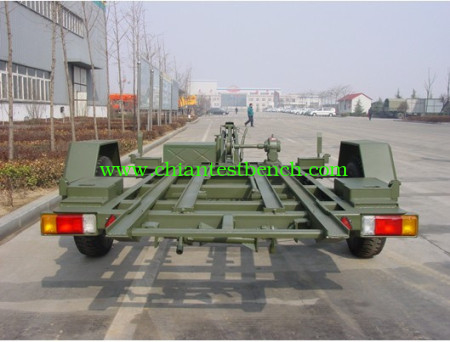

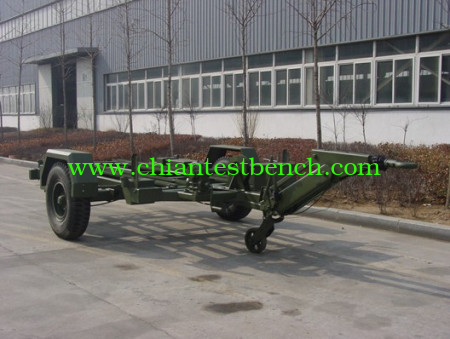

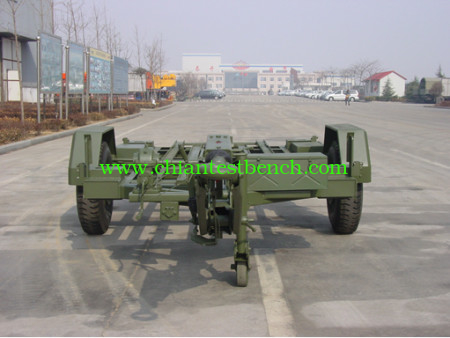

TAZDB01-3.5 Drawbar Trailer

I'm Online Chat Now

TAZDB01-3.5 Drawbar Trailer

China TAZDB01-3.5 Drawbar Trailer supplier
TAZDB01-3.5 Drawbar Trailer supplier TAZDB01-3.5 Drawbar Trailer supplier TAZDB01-3.5 Drawbar Trailer supplier TAZDB01-3.5 Drawbar Trailer supplier

Large Image :  TAZDB01-3.5 Drawbar Trailer

Product Details:

Place of Origin: Tanan city, China
Brand Name: sino semi trailer
Certification: ISO
Model Number: TAZDB01-3.5

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Packaging Details: Nude packing
Delivery Time: 30 days after receiving 30% deposit by T/T
Payment Terms: L/C,T/T
Supply Ability: 20000 Unit/Units per Year
Contact Now
Detailed Product Description

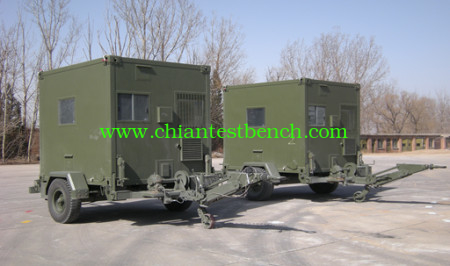

The Drawbar trailer is designed for stevedoring and transporting Military Shelters



Dimension & Weight:



   Overall Length: 5800mm

   Overall Width:  2490mm

   Height: 950mm(Fender Position)

   The Minimum Clearance from the ground:330mm

   Platform (L x W x H) 2860 X 1970 X 670

   Tare weight: 1,150kgs

   Maximum Speed: 80(km/h)

   Wheel track: 2260

   Tire size: 8.25-16LT-16PR bias tyre; 2 PCS;

   Tires pressure: 630kpa

   Frame material: 16MnL steel plate

   Axle: 1 PCS





Note:

 (1): All the details not mentioned above should be conformity with Chinese Standard.

 (2): These specifications are given as information, SINOTRUCKTREAILERS have right to

       change them without previous   no  tice.
