SINOTRUK HOWO 4X2 TRACTOR TRUCK ZZ4187N3511V

I'm Online Chat Now

SINOTRUK HOWO 4X2 TRACTOR TRUCK ZZ4187N3511V

China SINOTRUK HOWO 4X2 TRACTOR TRUCK ZZ4187N3511V supplier

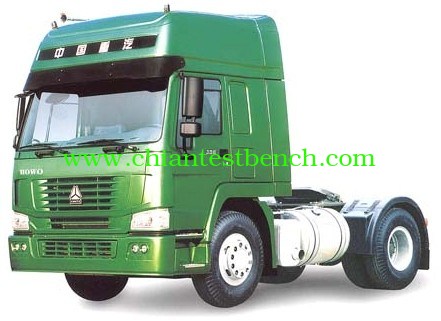

Large Image :  SINOTRUK HOWO 4X2 TRACTOR TRUCK ZZ4187N3511V

Product Details:

Place of Origin: Shandong, China
Brand Name: CNHTC
Certification: CCC, ISO, BV, GJB, CQC
Model Number: ZZ4187N3511V

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Packaging Details: Nude packing
Delivery Time: 30 days after receiving 30% deposit by T/T
Payment Terms: T/T, L/C, Western Union
Supply Ability: 20000 Unit/Units per Year
Contact Now
Detailed Product Description



Specifications

Tractor Truck Driving Type 4x2

GVW 19000kg

Model

ZZ4187N3511V



Engine

Make: STEYR
Diesel: 4-stroke direct injection diesel engine
Engine model: WD615.69, Euro II emission standard
6-cylinder in-line with water cooling, turbo-charging and intercooling
Maximum output: 336 hp (247 Kw) at 2200 rpm
Maximum torque: 1300 Nm at 1300-1600 rpm
Number of cylinder: 6
Displacement: 9.726 I
Bore: 126 mm
Stroke: 130 mm
Compression ratio: 34.5 hp/I
Specific fuel consumption: 198 g/kWh
Engine oil filling quantity: 19 I
Cooling system filling quantity (long-term filling): 40 I
Thermostat with 71℃opening begin
Single cylinder air compressor
Rigid fan



Clutch

Single-plate dry coil-spring clutch, diameter 420 mm, hydraulically operating with air assistance

Transmission

QJ transmission, model 5S-150GP, synchromesh, 9 forward & 1 reverse
Ratio: 13.04 8.48 6.04 4.39 3.43 2.47 1.76 1.28 1.00 11.77®

Propeller Shaft

Double universal joint propeller shaft with gear-shaped coupling flange

Front Axle

Steering with double T-cross section beam

Rear Axles

Pressed axle housing, central single reduction with planetary wheel reduction and with differential locks between wheels and axles
Ratio: 4.80
Option: single reduction axles, ratio: 4.22

Chassis

Frame: U-profile parallel ladder frame with section of 300x80x8 mm and reinforced subframe, all cold riveted cross members
Front suspension: 9 semi-elliptic leaf springs
Rear suspension: 12 leaf semi-elliptic springs with hydraulic telescopic double-action shock absorbers and stabilizer
Aluminum fuel tank: 350 I capacity with locking fuel cap, fitted to the off side of the chassis
Fifth wheel size: 2 inch
Option: 3.5 inch fifth wheel

Steering

ZF power steering, model ZF8098, hydraulic steering with power assistance
Ratio: 26.2

Brakes

Service brake: dual circuit compressed air brake
Parking brake (emergency brake): spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust valve brake
Option: ABS

Wheels & Tyres

Rims: 8.5-20, 10 hole-steel
Tyres: 12.00-20 tube
Option: 12R20 tube, 12R24 tube and 12R22.5 tubeless

Driver's Cab

High deck cab, all-steel forward control, 70° hydraulically tiltable to the front, 2-arm windscreen wiper system with three speeds, laminated
windscreen with casted-in radio aerial, hydraulically damped adjustable driver's seat and rigid adjustable co-driver's seat, with heating and
ventilating system, exterior sun visor, adjustable roof flap, stereo radio/cassette recorder, safety belts, adjustable steering wheel, air horn,
air conditioner and single bunk, with 4-point support fully floating suspension + shock absorbers with transverse stabilizer

Electrics

Operating voltage: 24 V, negative grounded
Starter: 24 V, 5.4 Kw
Alternator: 3-phase, 28 V, 1500 W
Batteries: 2x12 V, 165 Ah
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light

Instrument Panel

Active check central controller with indicators, with this integral instrument the daily manual checks on the vehicle and combined indicators
of compressed air pressure, coolant temperature, engine oil pressure and battery charging

Dimensions in mm

Wheel base
Front wheel track
Rear wheel track
Front overhang
Rear overhang
Approach angle (°)
Departure angle (°)
Overall length
Overall width
Overall height with roof air spoiler
Height of fifth wheel above road

3500
1939
1800
1500
1110
15
42
6110
2480
3668
1364

Weight in kg

Dead weight
Permissible loading capacity at fifth wheel
Gross vehicle weight
Gross combination weight
Front axle loading capacity
Rear axle loading capacity

7210
11645
19000
50000
6500
13000

Performance

Maximum driving speed (km/h)
Maximum gradeability (%)
Minimum ground clearance (mm)
Minimum turning circle (m)
Fuel consumption (1/100 km)

102
34
298
14.2
34







The manufacturer reserves the right of technical alternation/change for better improvement without prior notice!
