truck mounted water well drilling rig TAZ5173TZJBZC350

I'm Online Chat Now

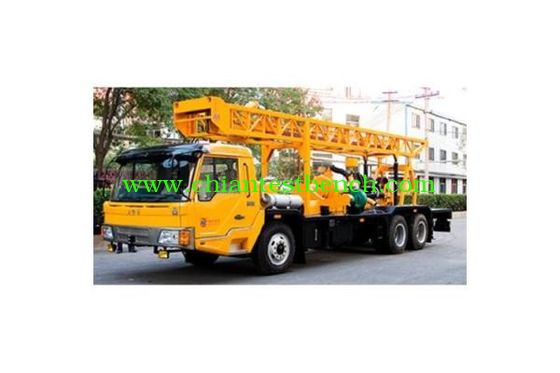

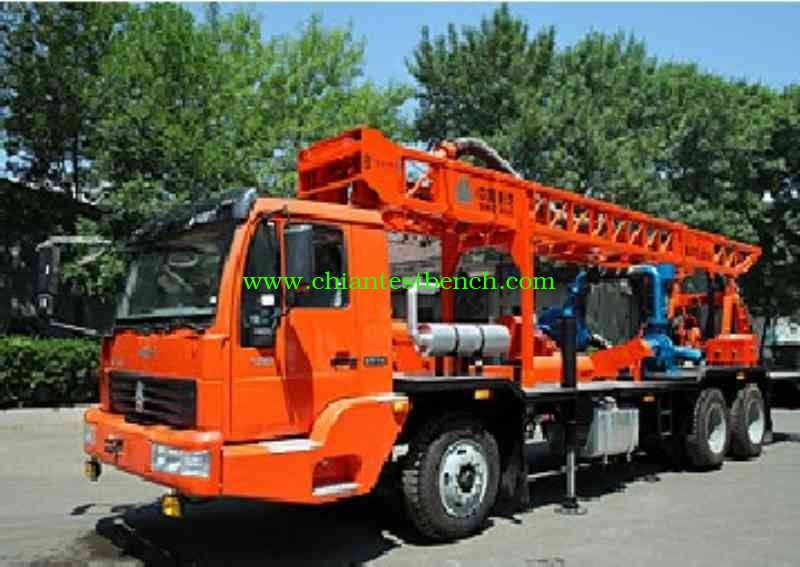

truck mounted water well drilling rig TAZ5173TZJBZC350

China truck mounted water well drilling rig TAZ5173TZJBZC350 supplier
truck mounted water well drilling rig TAZ5173TZJBZC350 supplier truck mounted water well drilling rig TAZ5173TZJBZC350 supplier

Large Image :  truck mounted water well drilling rig TAZ5173TZJBZC350

Product Details:

Place of Origin: Tanan city, China
Brand Name: CNHTC
Certification: ISO9001
Model Number: TAZ5173TZJBZC350

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Packaging Details: Nude packing
Delivery Time: 30 days after receiving 30% deposit by T/T
Payment Terms: L/C,T/T
Supply Ability: 200 Unit/Units per Year
Contact Now
Detailed Product Description


Specifications:



Technical parameter

Drilling depth(M)

50

150

Drilling diameter(mm)

1500

500

Speed of turntable(r/min)

80.3,52.1,32.18.64,10.99,10.48((reverse)

Torque of turntable(KN.m)

10.9,17.4, 30.7, 52.1, 54.8 (reverse)

Single rope lifting capacity of windlass(KN)

30

Lifting capacity of hook(KN)

120

Bearing capacity of mast (KN)

150

The height of mast (mm)

7240

Bearing weight(t)

15

Pipe

Kelly(mm)

182*182*5000

Assistant pipe(mm)

D168*8*3000 (screwed connection)


Hydraulic pump

Model

CB-E532

Pump delivery(ml/r)

32

Rater speed (r/min)

2000

Rated pressure (MPa)

16


Mud pump

Flux (m³/h)

200

Suction (m)

7.5

Delivery lift (m)

26

Speed (r/min)

1450

Power (KW)



30


Sewage pump


6BS

Sewage pump

Flux (m³/h)

280

Suction (m)

7.5

Delivery lift(m)

18

Speed (r/min)

730

Power (KW)

30


Match power


Diesel engine

Model

NC4110ZG17-20

Rater power(KW)

74

s peed(r/min)

2000

weight(t)

15

Transport size (L*W*H)(mm)

7144*2300*8315

Working size(L*W*H)(mm)

7460*2300*3060

Walking speed does not be allowed more than second gear speed.
