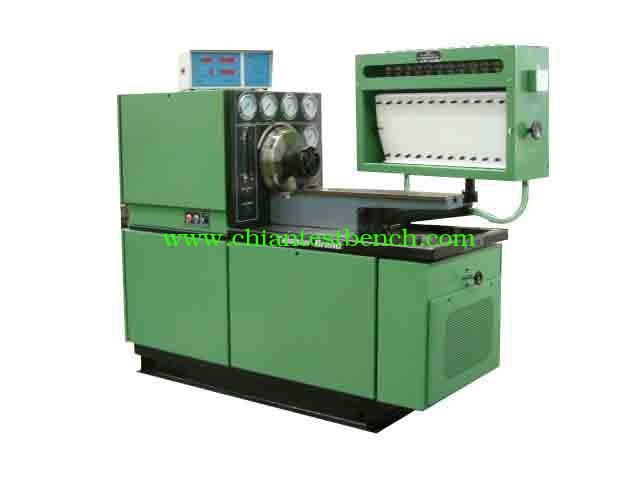

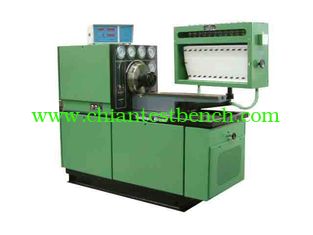

12PSDB fuel injection pump test bench

China 12PSDB fuel injection pump test bench supplier

Large Image :  12PSDB fuel injection pump test bench

Product Details:

Place of Origin: Taian China
Brand Name: Taishan
Certification: ISO9001
Model Number: 12PSDB

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Wooden case
Delivery Time: 15 days
Payment Terms: T/T
Supply Ability: 60 sets a month
Contact Now
Detailed Product Description
Color: Green, Blue, Yellow Or On Request

12PSDB series fuel injection pump test bench is design for customer's require. This series test bench adopt high quality frequency conversing device, and it has characteristic with hi-reliability, low-noise, energy save, high output torque, perfect auto-protecting function and operate easy. It is the kind of product with high quality in our business.

Main function 1.The amount and uniformity of oil supply in each cylinder of injection pump

2.The start point and interval angle of oil supply of injection pump

3.The adjusting and testing of speed regulators working performance

4.The test of sealing performance of injection pump

5.The observation of oil return amount of distribution pump at different speed

6.Check pressure compensator of distribution pump

7.Measure the working performance of advance device and air governor

8.Do experiment on air governor with vacuum detector


1.Output power: 5.5kw, 7.5kw, 11kw, 15kw, 18.5kw

2.Electronical supply 3-Phase 380V/50HZ(or on request)

3.Interaxe height: 125mm

4.Graduates: 45ml, 150ml

5.Volume of fuel tank: 60L

6.Feeding fuel pressure: Low: 0-0.4Mpa High: 0-4Mpa

7.Range of speed: 0-4000RPM

8.Air pressure: 0~0.2

9.control temperature of fuel oil: 40±2

10.DC.: 12V/24V

11.Testable cylinders of pump: 12
