high quality for desert 6X6 heavy tractor chassis
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description

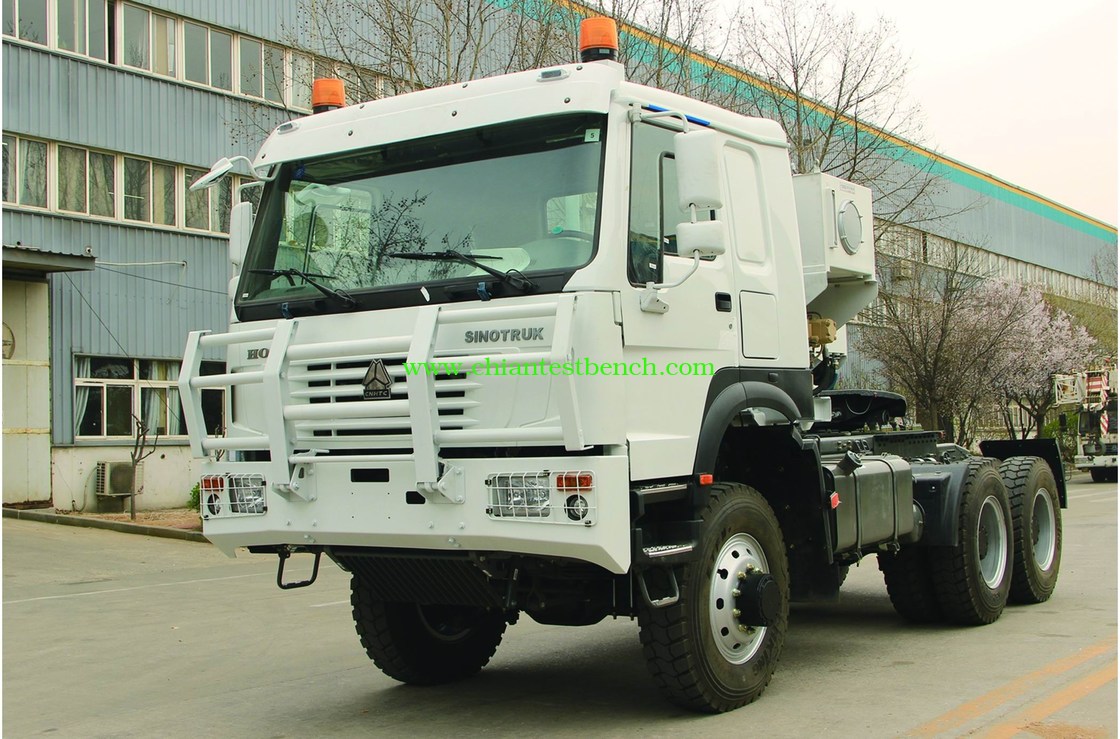

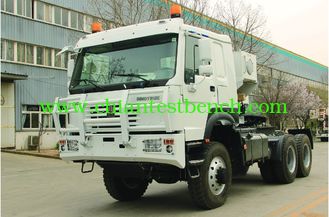

6x6 heavy tractor chassis adopts CNHTC HOWO cab, MAN series engine, ALLISON hydraulic torque converter, large ratio axles, etc. Equipped with high-end assembly, such as American Paccar hydraulic winch, JOST bolster, imported cylinder and pump valves, this vehicle is powerful, advanced and reliable. Its maximum towing total mass reaches 100t. It is mainly used on the road, the transition zone of road and gobi. Its overall performance is at the advanced level of the industry. It is widely used for equipment transition in oil fields and mine fields.
|
Main parameters and configurations |
||
|
Model |
TAZ4413 |
|
|
Drive type |
6x6 |
|
|
Quality parameters |
Total mass (kg) |
41000 |
|
Dimension parameters |
Overall dimensions(mm) |
7720x2500x3265 |
|
Wheel track(mm) |
3600/1470 |
|
|
Whell base(mm) |
1884/1873 |
|
|
Front/Rear overhang(mm) |
1670/890 |
|
|
Operation parameters |
Max gradeability(%) |
30% |
|
Min turning diameter(m) |
≤21 |
|
|
Max speed(km/h) |
80 |
|
|
Fifth wheel |
JOST JSK 38G1 |
|
|
Winch |
BRADEN HP100B |
|
|
Engine |
Model |
MC 11.43-30 |
|
Power/rev(kw/r/min) |
316/(1600-1900) |
|
|
Gearbox |
Model |
ALLISON 4500 |
|
Velocity ratio |
4.696, 2.231, 1.529, 1.00, 0.762, R5.552 |
|
|
Cab |
CNHTC HOWO cab |
|
|
Tires |
12.00R24 cross-country tread pattern, single tire on front axle, double tires on 2nd and 3rd axles |
|
|
Axles |
Double reduction large torque axles with inter-wheel and inter-axle differential locks |
|
|
Suspension system |
Front suspension with few leaf springs, ear type; leaf spring rear suspension, balance shaft type |
|
