truck mounted water well drilling rig TAZ5173TZJBZC350

I'm Online Chat Now

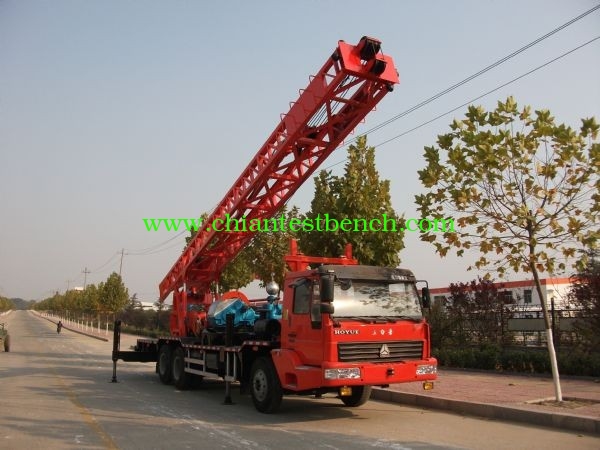

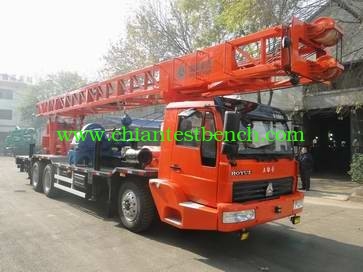

truck mounted water well drilling rig TAZ5173TZJBZC350

China truck mounted water well drilling rig TAZ5173TZJBZC350 supplier
truck mounted water well drilling rig TAZ5173TZJBZC350 supplier truck mounted water well drilling rig TAZ5173TZJBZC350 supplier

Large Image :  truck mounted water well drilling rig TAZ5173TZJBZC350

Product Details:

Place of Origin: Tanan city, China
Brand Name: CNHTC
Certification: ISO9001
Model Number: TAZ5173TZJBZC350

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Packaging Details: Nude packing
Delivery Time: 30 days after receiving 30% deposit by T/T
Payment Terms: L/C,T/T
Supply Ability: 200 Unit/Units per Year
Contact Now
Detailed Product Description



Specifications:

TAZ5173TZJBZC350 is a multi-purpose water well drill machine .

for light, highly efficient, multi-purpose crawler rigs, which are mainly used in the drilling of wells, monitoring wells, ground source heat pump air-conditioning and other deep hole, especially for applications that require high-performance intensive operations ground-source heat pump air-conditioning hole works.



Technical parameters





Engine Power

Kw

59

Maximum drilling depth

m

400

Drilling diameter

mm

105-305

Air pressure

Mpa

1.05-2.46

Total gas consumption

m3/min

16-30

Footage efficiency

m/h

10-25

Pipe length

m

3

Pipe diameter

mm

Φ89/Φ76

Axial pressure

t

4.5

Lifting Power

t

8

Slow up speed

m/min

4.9

Slow forward speed

m/min

0.5-7.9

Quick up speed

m/min

26

Quick forward speed

m/min

45

Slewing torque

N*m

4000-5400

Rotary speed

r.p.m

0-100

Walking speed

km/h

2.5

Gradeability

°

21

Host weight

t

6.5

Host Overall dimensions

mm

5600x2080x3100
