Manual Portable MDF Edge Banding Machine Straight Line and Curve Edge Banding with Cheap Price

I'm Online Chat Now

Manual Portable MDF Edge Banding Machine Straight Line and Curve Edge Banding with Cheap Price

China Manual Portable MDF Edge Banding Machine Straight Line and Curve Edge Banding with Cheap Price supplier
Manual Portable MDF Edge Banding Machine Straight Line and Curve Edge Banding with Cheap Price supplier Manual Portable MDF Edge Banding Machine Straight Line and Curve Edge Banding with Cheap Price supplier Manual Portable MDF Edge Banding Machine Straight Line and Curve Edge Banding with Cheap Price supplier Manual Portable MDF Edge Banding Machine Straight Line and Curve Edge Banding with Cheap Price supplier Manual Portable MDF Edge Banding Machine Straight Line and Curve Edge Banding with Cheap Price supplier

Large Image :  Manual Portable MDF Edge Banding Machine Straight Line and Curve Edge Banding with Cheap Price

Product Details:

Place of Origin: Shandong, China
Brand Name: XBD
Certification: ISO
Model Number: W-700

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD140.00-USD160.00 per set
Packaging Details: carton or wooden case
Delivery Time: 10-18 work days
Payment Terms: T/T, Western Union
Supply Ability: 1000 sets per month
Detailed Product Description
Voltage: 220V Dimension(L*W*H): 50*50*50mm
Power: 1025W Weight (KG): 30 Kg
Warranty: 1 Year Applicable Industries: Manufacturing Plant
Condition: New

Product Description

Portable woodworking edge banding machine

supply voltage
220V 50HZ
Total power
1.025KW
heating power
1KW
Motor power
25KW
Air Pressure
0.3-0.6Mpa
Edge banding width
7-60mm
Edge banding Thickness
0.3-3mm
Edge banding speed
0-12 cm/s
Package size
50*50*50cm
weight
30kg
Type of edge sealing material
PVC, wood veneer, melamine, Plastic,etc.



Manual Portable MDF Edge Banding Machine Straight Line and Curve Edge Banding with Cheap Price

1. Small size, light and convenient for upper and lower building decoration, large plates are also suitable, straight edge sealing, double-sided coating, automatic tape breaking

2. Special hose insulation design, increased capacity and short warm-up time.

3. The applicable width range of the edge band is increased to 8mm~50mm

4. Thermostat: The temperature is automatically controlled according to the sol temperature required for the edge band and hot melt adhesive.

5. Governor: Adjust the machine speed according to different glue and belt.

6. All electrical and pneumatic components have reached UL and CSA standards, and the whole machine has passed CE testing and certification.

7. The rubber shaft fixing frame is made of cast steel. The cast steel material is more stable and not deformed during preheating and vibration.

And the main drive shaft has fixed and fixed two vertical points, and is triangular, the structure is more stable, sturdy and durable.



Manual Portable MDF Edge Banding Machine Straight Line and Curve Edge Banding with Cheap Price

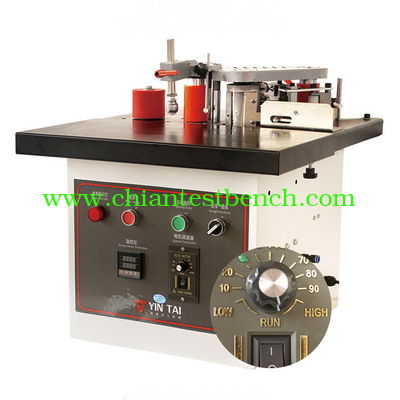

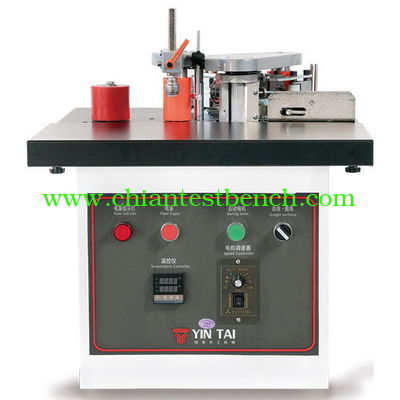

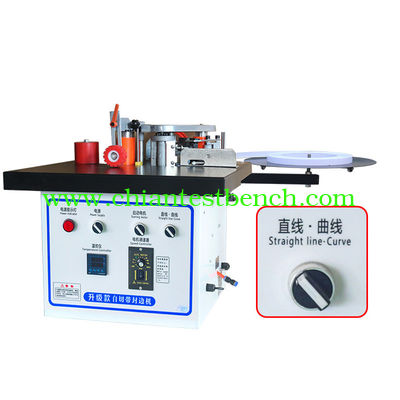

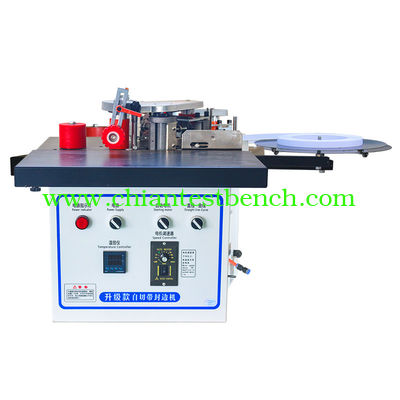

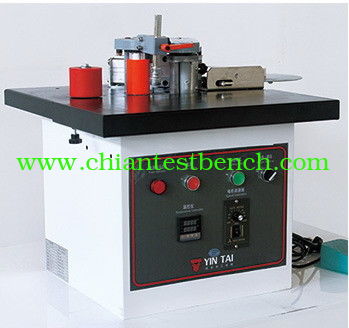

Detailed Images

Manual Portable MDF Edge Banding Machine Straight Line and Curve Edge Banding with Cheap Price



Manual Portable MDF Edge Banding Machine Straight Line and Curve Edge Banding with Cheap Price
