CRIS-2 common rail injector test bench

I'm Online Chat Now

CRIS-2 common rail injector test bench

China CRIS-2 common rail injector test bench supplier

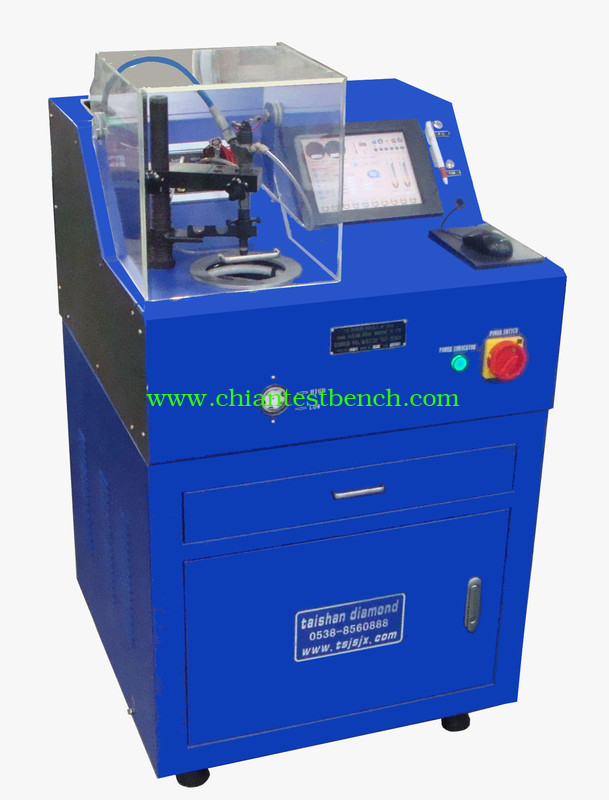

Large Image :  CRIS-2 common rail injector test bench

Product Details:

Place of Origin: Taian China
Brand Name: TAISHAN
Certification: ISO9001
Model Number: CRIS-2

Payment & Shipping Terms:

Packaging Details: wooden case
Delivery Time: 15 days
Payment Terms: T/T
Supply Ability: 100 sets a month
Minimum Order Quantity: 1 sets
Detailed Product Description
Color: Green, Blue, Yellow Or On Request
High Light:

common rail

,

common rail test bench

,

common rail injector test bench

CRIS-2 high pressure common rail injector test bench is based on the diesel engine ECU, also provides control signal of common rail system of Bosch, Denso, Delphi and Siemens etc. (the CP1 /CP2 /CP3/ HP3 /HP4 / DELPHI), drive the high pressure common rail injector to work. The user can set parameters according to their actual situation, and save the data according to the different group, so that the servicemen do the correct judgment and maintain of the working of common rail system.

Characteristics and Funcitons

1. support various rail pressure sensor,

2. Protection function of short-circuit.

3. the motor soft start, frequency-changing and speed-regulation

4. provide special fixture of testing injector,

5. Pulse and frequency of the injector drive signal can be adjusted.

6. Test the oil quantity of common rail injector

7. Test the backflow oil quantity of common rail injector

8. Test the open pressure and atomization of injector,

9. Test the cranking iol quantity of common rail injector.

10. Test the sealing of injector.

11. Various language available, such as Chinese, English.

12. Provide safety protection design, use more safety.

13. Screen display the oil mass

Main Technical Data:

Model

CRIS-2

Rotating speed range of main shaft (rpm)

0~3000

Rotation direction of main shaft

Positive, negative

Testable cylinders of injection pump

1

Maximum output power (kw)

5.5

Fuel supply pressure of common rail (Mpa)

0~160

Auto overturn angle of measuring oil plate(degree)

180

Time indication of pour oil (s)

30

Oil measuring frequency

0~1000

Capacity of fuel tank (L)

20

Pulse Width set: (MS)

0~-3000

Pressure control (PID)

Open loop /close loop

Power of Ultrasonic cleaner(kw)

0.2

Power of inverter (kw)

7.5

Controlling temperature of fuel (℃)

40±2

Power of main motor (kw)

5.5

Weight (kg)

300
