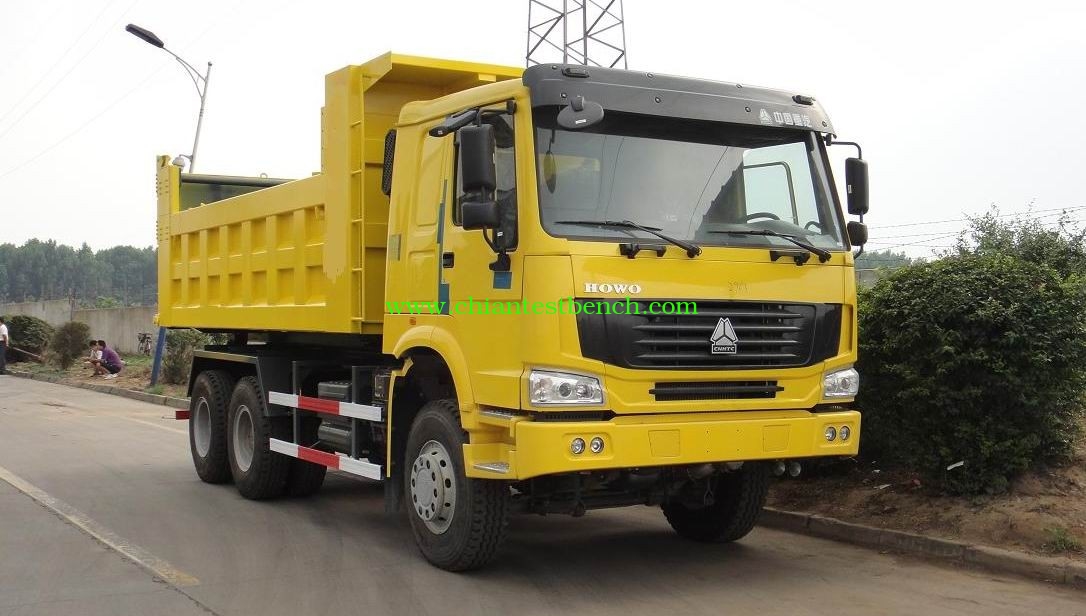

SINOTRUK HOWO TRUCK TIPPER TRUCK 6X4 DUMP TRUCK

Model

ZZ3257M3247W

Driving Type

6x4

Overall Dimensions(mm)

7545×2496×3386

Carriage Internal Dimensions(mm)

4800x2300x1200

Cubage (m3)

13.3

Steel thickness of Carriage(mm)

Floor:8mm/Side:6mm

Gross vehicle weight (Kg)

25000

Kerb weight (Kg)

12020

Front axle loading capacity (Kg)

9000

Rear axles loading capacity (Kg)

2x16000

Hydraulic Lift of Carriage

Middle Lift

Max. drving speed (km/h)

75

Fuel consumption  (1/100 km)

38

Engine

Model

WD615.62

WD615.87

Horsepower

266

290

Max. output Kw/r/min

196/2200

213/2200

Max. torque N.m/r/min

1100/1100-1600

1160/1100-1600

Type

6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection

Bore x Stroke

126x130mm

Valve

2

Displacement

9.726L

Euro II emission standard, Thermostat with 80°C opening begin, Rigid fan

Option:Thermostat with 71°C opening begin; silicone oil fan; Cold-start with electric-inlet-air heating System (180Ah battery)

Cab

HW76 Lengthen cab,single bunk,new type seat, adjustable steering wheel,EURO new type heating & ventilating system,
German VDO instruments,safety belts, exterior sun visor,stereo radio/cassette recorder,left driving,air conditioner
Option: right hand driving; color

Clutch

SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance

Transmission

SINOTRUK HW15710 transmission ,10 forward and 2 reverse

Front Axle

SINOTRUK HF9 Front Axle,new 9-ton front axles of equipped with drum brakes.Option: disc brake

Steering

ZF8098 Steering Gear Box ,hydraulic steering with power assistance,Ratio:22.2-26.2

Rear Axle

HC16 Heavy reduction drive axle,STR hub-reduction with differential locks between wheels and axles, enforced STR axle

Brake System

Service brake

dual circuit compressed air brake

Parking brake
(emergency brake)

 spring energy,compressed air operating on rear wheels

Auxiliary brake

 engine exhaust valve brake;Option:EVB

Wheels & Tyres

Rims

8.5-20,10 hole-steel

Tyres

12.00-20 diagonal tyre with 1 Spare tire

Option

12.00R20 radial tyre

Electrics

Operating voltage

24V,negative grounded

Starter

24V,7.5 Kw

Alternator

3-phase,28V,1500 W

Batteries

2x12 V,165 Ah

Other

horn, headlamps, fog lights, brake lights, indicators and reverse light

Option

2x180Ah Batteries

Oil Tank

Square type-300L Aluminum alloy fuel tank

Optional

Vertical Muffler;ABS;Automatic Break Clearance Adjusting Arm; Traveling Data Recorder;
Under Starting/Stopping Device;Metal Pipeline;Engine Protective Board
