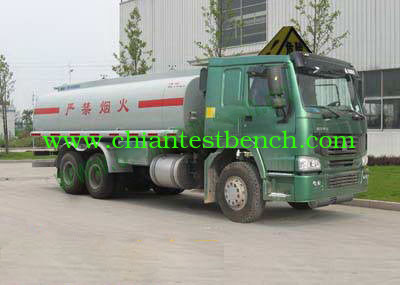

6x4 HOWO 20000 liter fuel tanker truck
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Engine Capacity: | WD615.69 | Dimensions (L X W X H) (mm): | 8610×2496×3300 |
|---|---|---|---|
| Storage: | Oil | Drive Wheel: | 6x4 |
| Horsepower: | 251 - 350hp | Transmission Type: | Manual |
| Fuel Type: | Diesel | Tank Volume: | 15001 - 30000L |
|
Cabin |
HW 76 cab, with one bed and air condition, 70°hydraulically tillable to the front as attached photo for ref. |
|
|
Vehicle Main Dimensions |
Overall dimensions (L x W x H)mm |
8610×2496×3300 |
|
Wheel base (mm) |
4325+1350 |
|
|
Wheel track (front/rear) (mm) |
1500/2625 |
|
|
Approach/Departure angle(°) |
16/15 |
|
|
Weight in KGS |
Tare Weight |
11000 |
|
Payload |
13750 |
|
|
Front axles loading capacity |
1x7000 |
|
|
Rear axles loading capacity |
2x16000 |
|
|
Max. driving speed(km/h) |
90 |
|
|
Engine |
Brand |
Sinotruk |
|
Model |
WD615.69 |
|
|
Type |
4-stroke direct injection , 6-cylinder in-line, turbo-charging and inter-cooling |
|
|
Horse Power(HP) |
336 HP |
|
|
Emission standard |
Euro Ⅱ |
|
|
Gearbox |
10 Forwards gear & 2 reverse gear |
|
|
Steering |
power steering ZF8098 from Germany |
|
|
Tire |
12.00-20 bias tyre |
|
|
Tank specification |
20,000 liters, tank thickness is 4 mm, seal is 5 mm |
|
|
Production cycle |
20 days |
|
