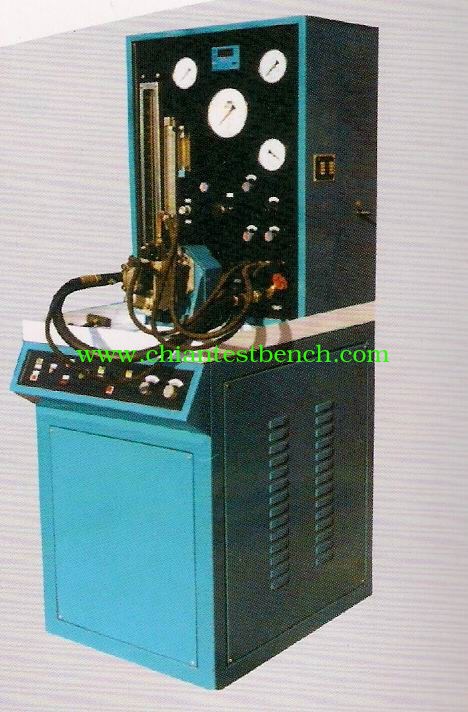

PT-BDF PT pump test bench

China PT-BDF PT pump test bench supplier

Large Image :  PT-BDF PT pump test bench

Product Details:

Place of Origin: Taian China
Brand Name: Taishan
Certification: ISO9001
Model Number: PT-BDF

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Wooden case
Delivery Time: 15 days
Payment Terms: T/T
Supply Ability: 60 sets a month
Contact Now
Detailed Product Description
Power: Electronic Usage: Auto Testing Machine
Color: On Request



PTB PT Pump Test Stand mainly is used to test the performances of PT pump.

The test stand adopts advanced frequency converter to make steeples speed control. The dual-fioat-fiowmeter is used in the test system. The accuracy of fuel flow measuring is improved obviously and it can give an alarm for over-temperature.



Power consumption

5kw

Power supply

AC 380 50Hz

Boundary dimensions

850×650×1800

Weight

450kg

Speed

0~4000rpm

Speed instability

±1.5rpm

Main fiowmeter

2400lb/h

Leakage fiowmeter

500ml/min

Range of fuel pressure

0-2.5Mpa

Fuel temperature

30~38℃
