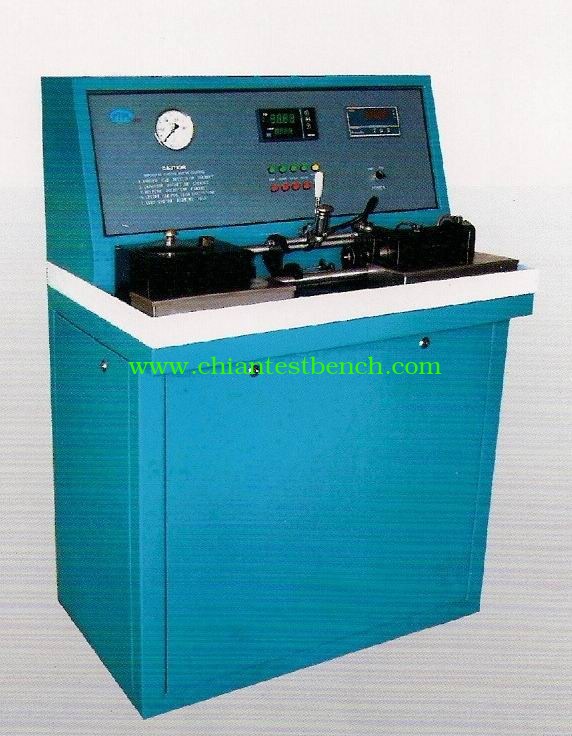

PTPL injector calibration stand

China PTPL injector calibration stand supplier

Large Image :  PTPL injector calibration stand

Product Details:

Place of Origin: Taian China
Brand Name: Taishan
Certification: ISO9001
Model Number: PT-BDF

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Wooden case
Delivery Time: 15 days
Payment Terms: T/T
Supply Ability: 60 sets a month
Contact Now
Detailed Product Description
Power: Electronic Usage: Auto Testing Machine
Color: On Request






PTQL Injector Calibration Stand is used to measure fuel injection volume for the various models in the some cycles.

Fuel injection volume is displayed with numerical code, so that the measuring result can be read clearly. The tested injector is clamped automatically when the test begins and at same time the fuel is supplied automatically to the test system. The checking results are very accuracy and reliability.

Power consumption

3kw

Power supply

AC 380 50Hz

Boundary dimensions

980×720×1510

Weight

360kg

Feed pressure

100Psi

Clamping pressure

100Psi

Fuel temperature

30—38℃

Range of measure

500ml/1000stroke
