TAZ9403T JZ container semi-trailer

I'm Online Chat Now

TAZ9403T JZ container semi-trailer

China TAZ9403T JZ container semi-trailer supplier

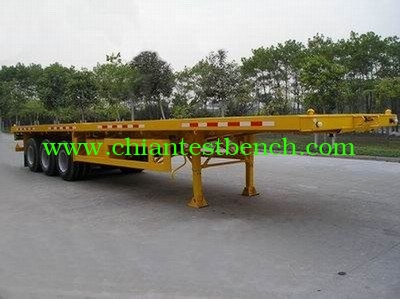

Large Image :  TAZ9403T JZ container semi-trailer

Product Details:

Place of Origin: Tanan city, China
Brand Name: CNHTC
Certification: ISO9001
Model Number: TAZ9403T JZ

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Packaging Details: Nude packing
Delivery Time: 30 days after receiving 30% deposit by T/T
Payment Terms: L/C,T/T,Western Union
Supply Ability: 200 Piece/Pieces per Month
Contact Now
Detailed Product Description



Moder

TAZ9403T JZ

TAZ9373T JZ

TAZ9404 JZ

Load weight

33300

30480

32400

Board total mass

6300

6740

7200

Max. gross weight

39600

37220

39600

Overall dimension(LxWxH)

12430*2500-1915

12430*2477*1515

12430*2477*1515

Tyre size

11.00-20,11.00R20

12.00-20,12.00R20

11.00-20,10.00-20

12.00-20

11.00-20,10.00-20

12.00-20

Axles number

3

3

3

Wheel track

1840

1840

1840



SPECIFICATION

Main  Frame

Back three axles and steel spring balance suspension system.With steel frame throughout type and the high quality alloy steel welding longeron into h-beam

Floor

Steel Sheet 3mm thickness

Axle

Three Units of FUWA 12Ton axle or on request

Suspension

3-axle mechanical suspension

Leaf Spring

Six sets of reliable local brand, 8-piece leaf spring

King Pin

one unit of 2`` welded kingpin

Landing Gear

Two-speed ,manual operation, heavy duty JOST landing gear or on request

Wheel Rim

Twelve units of 8.25-22.5 rim

Tyre

Twelve units of 11R22.5 tyre

Twist  Lock

Twelve nos. four nos are fasten mode,eight nos are up-down mode, of ISO twist lock for 2x20ft;1x40ft container,central locks can be laid down.

Spare Wheel Carrier

One set of spare wheel carrier including a riser.

Pneumatic Braking System

Two units of WABCO RE 4 relay valve; four units of T30/30 spring brake chamber; two units of T30 brake chamber , two units of reliable local brand 45L air tank ; two units of reliable local brand standard coppery air-connector.

Electrical  System

One unit of JAEGER POWAY ,24V 7-pin ISO 1185 socket;two sets of reliable ,local brand standard rear light,turn light,rear reflector,side light,side reflector etc. One set of  DAFA(brand ) 6-core standard Cable.

Painting

Sand blasting before painting;

one coats of primer, anti corrosion

two coat of finish painting;

colour advised by client

Accessory

One box with a set of standard trailer tool
