Semi-Trailer 20-50 tons Competitive Price

I'm Online Chat Now

Semi-Trailer 20-50 tons Competitive Price

China Semi-Trailer 20-50 tons Competitive Price supplier

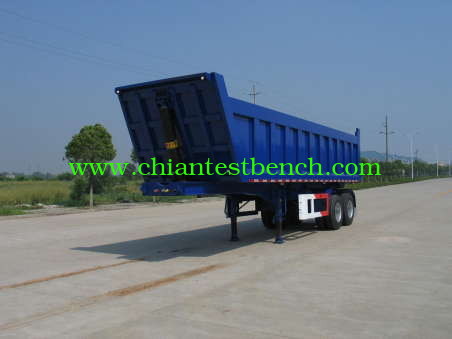

Large Image :  Semi-Trailer 20-50 tons Competitive Price

Product Details:

Place of Origin: Shandong, China
Brand Name: Wuyue
Certification: ISO
Model Number: Semi-Trailer

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Packaging Details: Nude packing
Delivery Time: 30 days after receiving 30% deposit by T/T
Payment Terms: L/C,T/T
Supply Ability: 20000 Unit/Units per Year
Contact Now
Detailed Product Description



Quick Details

  • Use: Truck Trailer
  • Type: Semi-Trailer,Semi-trailer
  • Material: Steel,Steel (Aluminum Side Protection)
  • Size: 14800x3000x2800cm
  • Max Payload: 100tons
  • Place of Origin: Shandong, China (Mainland)
  • Color: Optional
  • Load Capacity: 20 tons-100 tons
  • Axle Load: 20 tons- 80 tons
  • King-pin: 90mm
  • Accessories: Vertical support legs
  • Delivery Time: 30 days after receiving the 30% deposite by T/T
  • Axle: Three Axles (Abroad Tires)



Specifications

 Semi-trailer is:

1) Load capacity 20t-100t
2) High strength steel frame
3) Low tare weight
4) Competitive price



DIMENSIONS

Tare  Weight

7200kg

Payload

31750kg

Total  Weight

38950kg

Overall  Length

13000mm

Overall  Width

2500mm

Overall  Height

2720mm

Wheel track

1840mm

Wheelbase

7280mm+1310mm+1310mm

SPECIFICATION

Main  Frame

Back three axles and steel spring balance suspension system.With steel frame throughout type and the high quality alloy steel welding longeron into h-beam

Floor

Steel Sheet 3mm thickness

Axle

Three Units of FUWA 12Ton axle

Suspension

3-axle mechanical suspension,German design

Leaf Spring

Six sets of reliable local brand, 8-piece leaf spring

King Pin

one unit of 2`` welded kingpin

Landing Gear

Two-speed ,manual operation, heavy duty JOST landing gear

Wheel Rim

Twelve units of 8.25-22.5 rim

Tyre

Twelve units of 11R22.5 tyre

Twist  Lock

Twelve nos. four nos are fasten mode,eight nos are up-down mode, of ISO twist lock for 2x20ft;1x40ft container,central locks can be laid down.

Spare Wheel Carrier

One set of spare wheel carrier including a riser.

Pneumatic Braking System

Two units of WABCO RE 4 relay valve; four units of T30/30 spring brake chamber; two units of T30 brake chamber , two units of reliable local brand 45L air tank ; two units of reliable local brand standard coppery air-connector.

Electrical  System

One unit of JAEGER POWAY ,24V 7-pin ISO 1185 socket;two sets of reliable ,local brand standard rear light,turn light,rear reflector,side light,side reflector etc. One set of  DAFA(brand ) 6-core standard Cable.

Painting

Sand blasting before painting;

one coats of primer, anti corrosion

two coat of finish painting;

colour advised by client

Accessory

One box with a set of standard trailer tool

For the specification above , we reserve the right to make any changes without notice
