3 axle 38000 Liters fuel tanker semi trailer (38CBM)

I'm Online Chat Now

3 axle 38000 Liters fuel tanker semi trailer (38CBM)

China 3 axle 38000 Liters fuel tanker semi trailer (38CBM) supplier

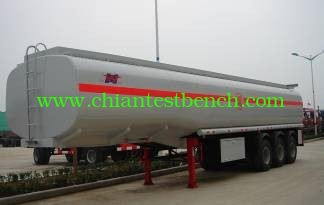

Large Image :  3 axle 38000 Liters fuel tanker semi trailer (38CBM)

Product Details:

Place of Origin: Shandong, China
Brand Name: sinotruck
Certification: ISO9001

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Packaging Details: nude
Delivery Time: 30 days after receiving 30% deposit by T/T
Payment Terms: T/T, L/C
Supply Ability: 20000 Unit/Units per Year
Contact Now
Detailed Product Description
Gross Vehicle Weight: 11500KGS Storage: Oil
Tank Volume: > 30000L



Main Dimensions

Overall Length

11240mm



Overall Width



Overall Height

2800mm

Tare Weight

11500KGS

Loading Capacity

38m3

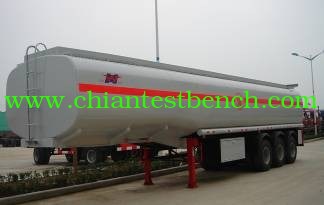

Photo only for reference,
final product can be made according to exact requirements

Tank Body

Shape

Mono block Cylinder

Total Volume(m3)

38CBM

Tanker Body Material

6mm steel / Q235 high tensile strength steel

End plate

6mm steel sheet/Q235 high tensile strength steel

Manhole cover

Aluminum alloy API manhole cover, ∮500mm ,
2 sets with 2 breather valve

Bottom Valve

1-2 sets of Aluminum API Pneumatic Bottom Valve

Discharging valve

2-4 set ∮100mm discharging valves

Discharging Pipe

4”rubber hose, 2 pcs, 6m long

Chassis

Main Beams

Special design I beam, connected by bolts and nuts with tanker body,
removable from tanker body for separate transportation;

Axle

3 axles

L1 12 Ton

Landing Gear

JOST brand Two-speed, manual operating, heavy duty landing gear

King Pin

JOST brand 2” bolt-in king pin

Suspension

German design heavy duty mechanical suspension

Pneumatic Braking System

WABCO RE 6 relay valve;
T30/30+T30 Spring brake chamber; 45L air tanks.

Wheel rim

8.25R22.5 wheel rim, 13 pieces

Tire

11R22.5 tubeless tire with one spare tire, 13 pieces

Painting

Complete Chassis sand blasting to clean rust,
1 coat of anticorrosive prime, 2 coats of final paint

Accessories

One standard tool box
