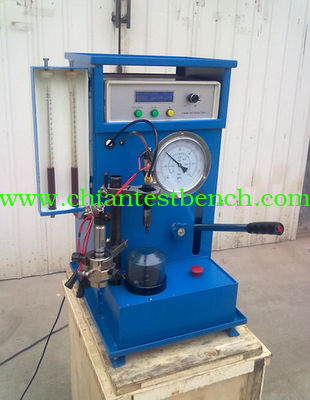

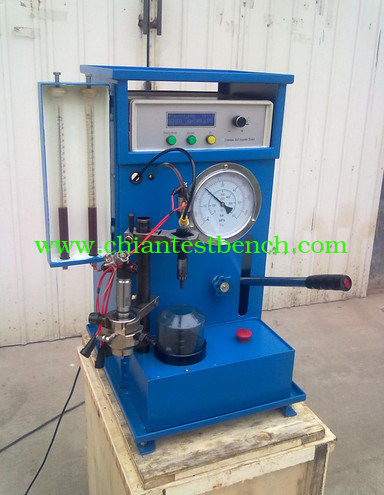

CRS-100 common rail injector tester
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Color: | Green, Blue, Yellow Or On Request |
|---|
CRS100 common rail injector tester imitate the diesel Engine ECU principle, provides high pressure fuel to common rail injector assembly. At the same time it provide Bosch, Denso, Delphi and other common rail system Control signal, drive common rail injector.CRS100 can measure common rail injector injection flow and return oil.
Used to test common rail injector performance, including sealing, the atomization quality, injection flow and return oil, electromagnetic valve opening and closing. It is currently the simplest, the ideal test equipment.
Technical parameters
1. Max pressure tested: 32 mpa
2. Common rail injector controller:
Range of pulse width: 100-5000Us
Frequency range: 1-30 Hz
Count range: 1-6000
Testing injector: BOSCH, DENSO, DELPHI, SIEMENS (special order)
3. Pressure meter measuring range: 0-60 mpa
4. Working voltage 220V
5. Weight 50 Kg
6 Dimensions: length*width*height (mm): 432x375x670
